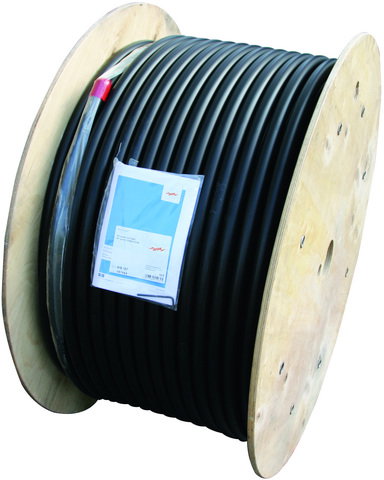

HVI power Conductor long D 27mm black FIX length on disposable reel 100m
Air-termination mast with HVI power Conductor (high-voltage-resistant, insulated down conductor), for keeping the separation distance from conductive parts according to IEC/EN 62305-3 in order to prevent dangerous flashover between parts of the external lightning protection system and indoor conductive parts (electrical installation, pipes, etc.). In order to avoid creeping discharge, the HVI power Conductor has a special outer sheath which makes it possible to discharge high lightning impulse voltages to a reference potential. Available for on-site assembly with a length of 100 m - black. Equivalent separation distance s ≤ 90 cm (in air), s ≤ 180 cm (solid material).
Ürün kimlikleri
SKU: 819137
EAN: 4013364152625
GTIN: 4013364152625
MPN: HVI P LO 90 27 L100M SW
Kategoriler
Özellikler
|
Colour
|
Black
|
|
Weight
|
85.4 kg/100 m
|
|
Max. tensile load
|
1200 N
|
|
Number of strands
|
7
|
|
Conductor category
|
Class 2 = stranded
|
|
Conductor material
|
Copper
|
|
Diameter conductor
|
5.6 mm
|
|
Sheathing material
|
Crosslinked polyethylene (XLPE)
|
|
Surface protection
|
Untreated
|
|
Material insulation
|
Polyethylene (PE)
|
|
Conductor cross section
|
25 mm²
|
|
Material quality conductor
|
-
|
|
Suitable for EX-applications
|
evet
|
|
Outer diameter incl. sheat/cover
|
27 mm
|
|
Characteristic conductor material
|
-
|
|
High-voltage-proof insulated model
|
evet
|
|
Max. equivalent separation distance s (in air)
|
0.9 m
|
|
Max. equivalent separation distance s (solid building materials)
|
1.8 m
|
