DEHNpatch combined arrester to 10 Gbit with RJ45 sockets and status indication

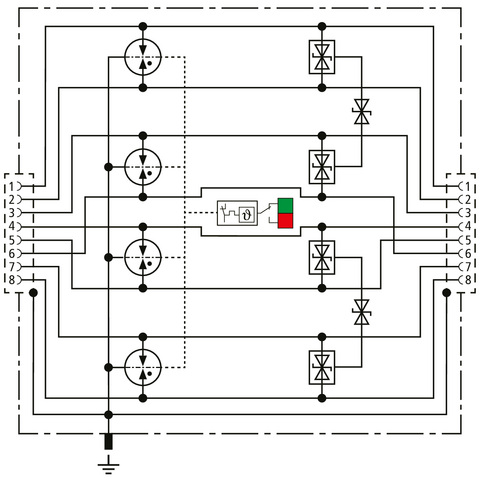

Universal, space-saving combined arrester of 19 mm in width and RJ45 connection system with status indication for simple maintenance. Protection of applications in structured cabling according to class EA to 500 MHz; e.g. industrial Ethernet, data distributors, digital camera systems, Power over Ethernet (IEEE 802.3 compliant to 4PPoE) and Ethernet-based interfaces in general. Protection of all pairs through powerful gas discharge tubes and protective diodes between signal cores and pairs. Fully shielded adapter design with RJ45 sockets for DIN rail mounting. With additional screw connection on the enclosure for an optional earth connection.
Ürün kimlikleri
SKU: 929161
EAN: 4013364472921
GTIN: 4013364472921
MPN: DPA CL8 EA 4PPOE
Kategoriler
Özellikler
|
Frequency
|
|
|
Connection 1
|
RJ45
|
|
Earthing via
|
DIN rail (top hat rail)
|
|
Assembly width
|
19 mm
|
|
Mounting method
|
DIN rail (top hat rail) 35 mm
|
|
Limiting frequency
|
500 MHz
|
|
Nominal voltage AC
|
|
|
Nominal voltage DC
|
3.3 - 3.3 V
|
|
Nominal load current
|
1.5 A
|
|
Signal disconnection
|
-
|
|
Explosion-tested version
|
-
|
|
Signalling at the device
|
Optical
|
|
Degree of protection (IP)
|
IP20
|
|
Pro-active thermo-control
|
hayır
|
|
Max. continuous voltage AC
|
-
|
|
Max. continuous voltage DC
|
58 V
|
|
With remote signalling contact
|
-
|
|
Voltage protection level core/core
|
100 V
|
|
Voltage protection level core/earth
|
600 V
|
|
Lightning impulse current (10/350 µs)
|
4 kA
|
|
Nominal discharge surge current (8/20)
|
10 kA
|
|
Number of conductors (without earthing)
|
8
|
|
Voltage protection level core/signal ground
|
-
|
|
Voltage protection level signal ground/protective ground
|
-
|
