Magne 3X M12-5 Lock

Link copied
SKU
EAN
GTIN
MPN

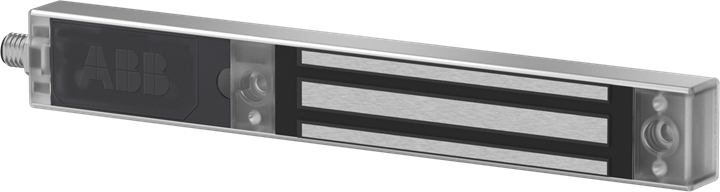

Magne 3X M12-5 is an electromagnetic lock with a M12-5 male connector. A +24VDC voltage is used for the locking. The holding force is up to 1500N and the protection class IP67. An anchor plate must be ordered separately.

Teknik özellikler

Width 35 mm
Height 274 mm
EFI00008 1.3779535
EFI00040 10.7874074
EFI05492 1.1811030|1.1811030
Voltage type DC
Wall distance 30 - 30 mm
Gripping force 1500 - 1500 N
Mounting method Surface mounting
Construction type Angular
Power consumption 9 W
SIL according to EN 62061 -
Suitable for floor mounting hayır
Performance level according to EN ISO 13849-1 -

Belgeler

Deeplink product page

Aç

Deeplink REACH

2CMT2022-006480.pdf

Aç

Dimensioned drawing

2CDC001079B0201_Rev B_MSS 2D and 3D files for CAD systems.pdf

Aç

Instructions for use

Magne_Product_Manual_(EN)_revN_2TLC172315M0201.pdf

Aç

Product data sheet

Aç

Declaration RoHS

2CMT2022-006499_Safety Products_revB.pdf

Aç

Declaration DOC CE (Declaration of conformity CE)

Declaration_of_conformity-Magne_3-EN-2019_2TLC010024D0201.pdf

Aç
