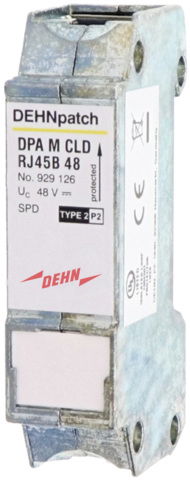

Surge arrester DEHNpatch with 2 RJ45 sockets

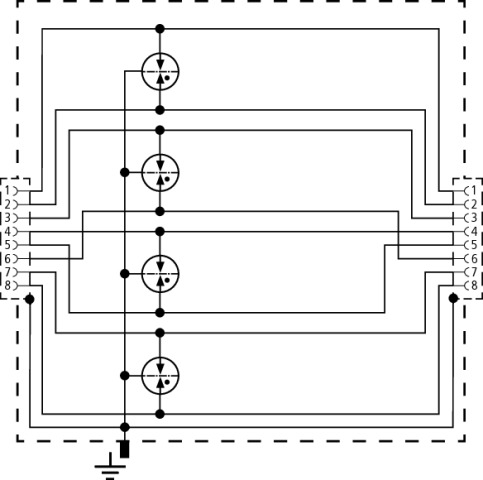

Universal arrester for Industrial Ethernet, Power over Ethernet (IEEE 802.3 compliant up to PoE++ / 4PPoE) and similar applications in structured cabling systems according to class D up to 100 MHz. Protection of all pairs by powerful gas discharge tubes. DIN rail mounted adapter type with sockets.
Ürün kimlikleri
SKU: 929126
EAN: 4013364242258
GTIN: 4013364242258
MPN: DPA M CLD RJ45B 48
Kategoriler
Özellikler
|
Frequency
|
|
|
Connection 1
|
RJ45
|
|
Earthing via
|
DIN rail (top hat rail)
|
|

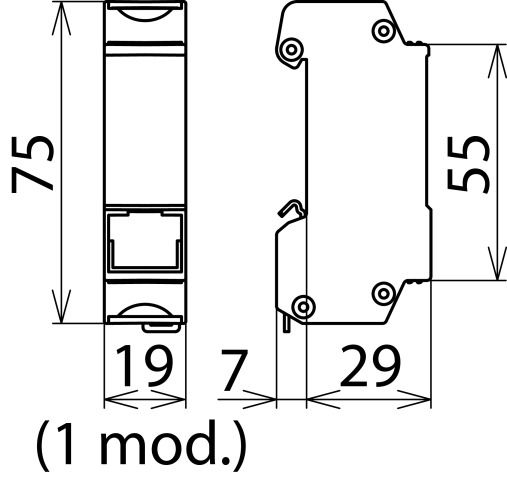

Assembly width
|
19 mm
|
|
Mounting method
|
DIN rail (top hat rail) 35 mm
|
|
Limiting frequency
|
100 MHz
|
|
Nominal voltage AC
|
|
|
Nominal voltage DC
|
48.0 - 48.0 V
|
|
Nominal load current
|
1 A
|
|
Signal disconnection
|
-
|
|
Explosion-tested version
|
-
|
|
Signalling at the device
|
-
|
|
Degree of protection (IP)
|
IP10
|
|
Pro-active thermo-control
|
-
|
|
Max. continuous voltage AC
|
34 V
|
|
Max. continuous voltage DC
|
57 V
|
|
With remote signalling contact
|
-
|
|
Voltage protection level core/core
|
600 V
|
|
Voltage protection level core/earth
|
500 V
|
|
Lightning impulse current (10/350 µs)
|
0.5 kA
|
|
Nominal discharge surge current (8/20)
|
10 kA
|
|
Number of conductors (without earthing)
|
8
|
|
Voltage protection level core/signal ground
|
-
|
|
Voltage protection level signal ground/protective ground
|
-
|
