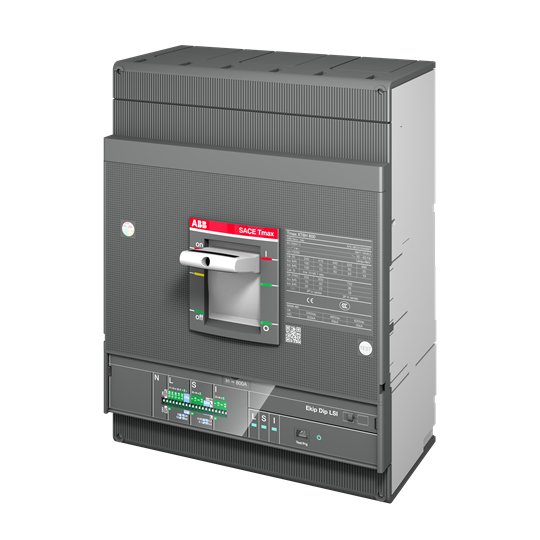

XT6H 800 Ekip M Dip LIU In=630A 3p F F

Name: XT6H 800 Ekip M Dip LIU In=630A 3p F F
Brand: ABB
SKU: 1SDA107592R1

C.BREAKER TMAX XT6H 800 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP M DIP LIU R 630

Ürün kimlikleri

SKU: 1SDA107592R1

EAN: 8056221028288

GTIN: 8056221028288

MPN: XT6H 800 Ekip M Dip LIU In=630A 3p F F

Low-voltage industrial components

Teknik özellikler

Rated voltage	690 - 690 V
Number of poles	3
Device construction	Built-in device fixed built-in technique
Motor drive optional	evet
Motor drive integrated	hayır
Type of control element	Toggle
Degree of protection (IP)	IP20
Rated permanent current Iu	630 A
With switched-off indicator	hayır
Overload release current setting	252.0 - 630 A
Integrated earth fault protection	hayır
Complete device with protection unit	evet
With integrated under voltage release	hayır
DIN rail (top hat rail) mounting optional	hayır
Suitable for DIN rail (top hat rail) mounting	hayır
Type of electrical connection of main circuit	Bolt connection
Position of connection for main current circuit	Front side
Adjustment range undelayed short-circuit release	3780 - 8190 A
Number of auxiliary contacts as change-over contact
Number of auxiliary contacts as normally open contact
Number of auxiliary contacts as normally closed contact
Adjustment range short-term delayed short-circuit release
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz	-
