Voltage detector PHE4 3...10kV 50 Hz with gear coupling Category S
Capacitive PHE4 voltage detector in accordance with EN/IEC 61243-1 (DIN VDE 0682-411) for verifying safe isolation from supply voltage on all poles at the work location in accordance with EN 50110-1 (DIN VDE 0105-100) in electrical installations. Category "S" for switchgear installations and overhead lines. With universal gear coupling in accordance with EN/IEC 60832 (DIN VDE 0682-211). Suitable for use in wet weather conditions. With visual and acoustic indication and self-testing element of all active parts including test prod. Short transport length due to unscrewable insulating stick with plug-in coupling for extending the handle.
Ürün kimlikleri
SKU: 783141
EAN: 4013364317222
GTIN: 4013364317222
MPN: PHE4 3 10 S ZK
Teknik özellikler
| Model | 1-pole |
| Category | S |
| Frequency | 50.0 - 50.0 Hz |
| Application | Switchgear and power cable for overhead lines |

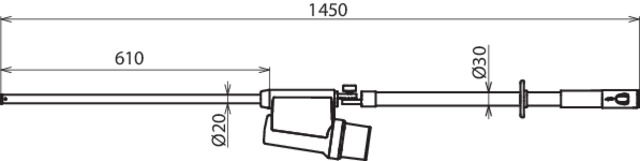

| Total length | 1440.0 - 1440.0 mm |
| Voltage type | AC |
| Immersing depth | 610 mm |
| Nominal voltage | 3.0 - 10.0 kV |
