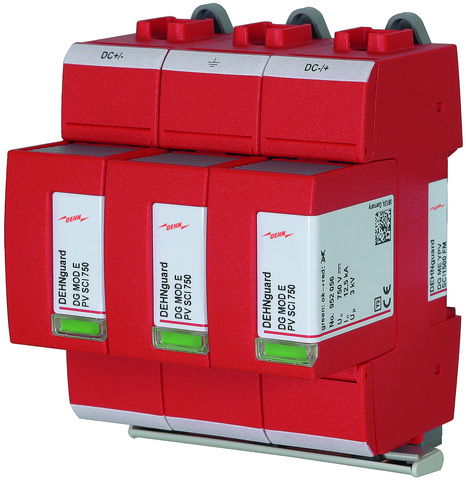

Surge arrester type 2 DEHNguard ME multi- pole f. PV systems up to 1500V d.c. FM
Multipole DEHNguard ME YPV SCI type 2 surge arrester according to EN 50539-11 with three-step d.c. switching device consisting of a base part and plug-in protection modules. Combined disconnection and short-circuiting device with safe electrical isolation in the protection module. For protecting low-voltage consumer's installations against surges. For use according to IEC 60364-7-712:2002-05 (installation of photovoltaic power supply systems).
Ürün kimlikleri
SKU: 952525
EAN: 4013364149076
GTIN: 4013364149076
MPN: DG ME YPV SCI1500 FM
Kategoriler
Teknik özellikler
| Category type 2 | evet |
| Max. PV-voltage | 1500 V |
| Mounting method | DIN rail (top hat rail) 35 mm |

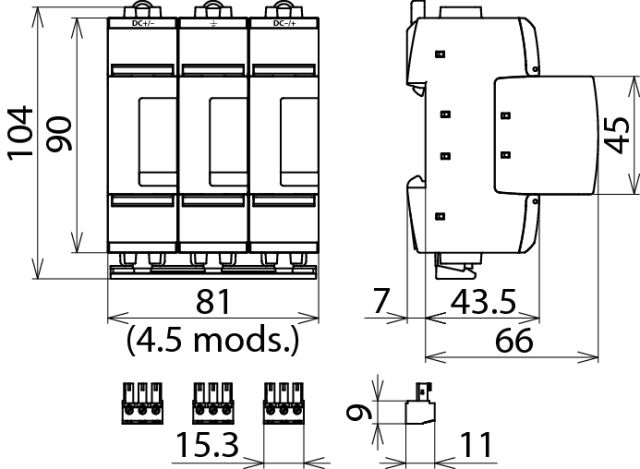

| Construction size | 4.5 modular units |
| Nominal voltage AC | - |
| Nominal voltage DC | - |
| Leakage-current free | - |
| Integrated backup fuse | - |
