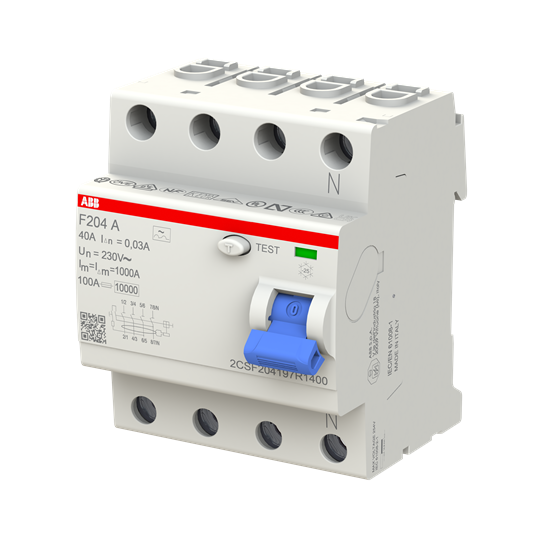

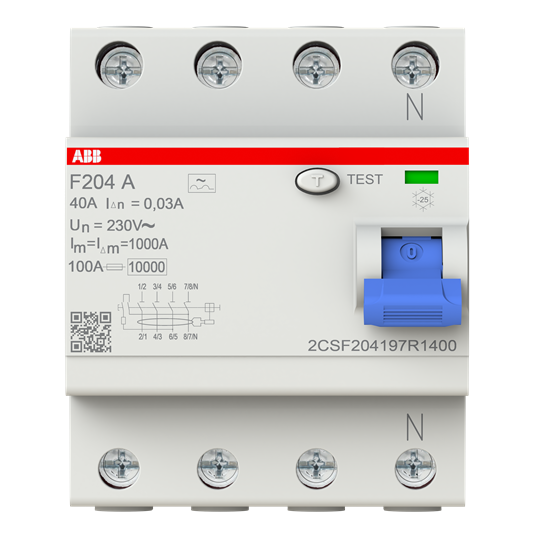

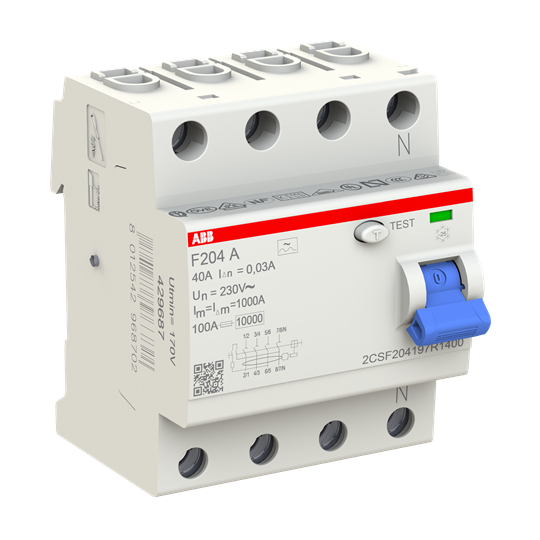

Residual Current Circuit Breaker - 4P - Type A - 30 mA - 40 A
ABB

Residual Current Circuit Breaker - 4P - Type A - 30 mA - 40 A

The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications. This product is suitable for high frequency applications (400 Hz).

Ürün kimlikleri

SKU: 2CSF204197R1400
EAN: 8012542968702
GTIN: 8012542968702
MPN: F204 A-40/0.03 400Hz

Kategoriler

Switchgear & Circuit Protection Circuit Breakers RCDs

Teknik özellikler

EFI00218 2.71653
EFI07337 0.0387|0.0387
EFI07343 0|0.0387
EFI07515 -13|131
Frequency Other
Voltage type -
Rated current 40 A
Rated voltage 400 V
Explosion-proof hayır
Number of poles 4
Rated fault current 0.03 A
Selective protection hayır
With interlocking device evet
Rated insulation voltage Ui 500 V
Additional equipment possible evet
Ambient temperature during operating -25 - 55 °C
Short-circuit breaking capacity (Icw) -
Connectable conductor cross section multi-wired
