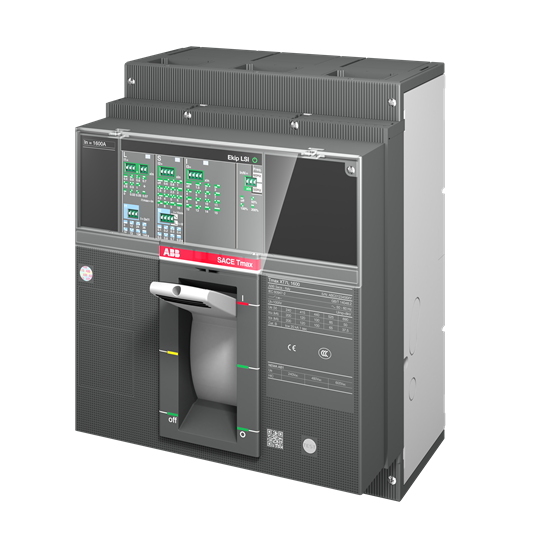

XT7H 1600 Ekip Dip LSI In=1600A 3p F F

Name: XT7H 1600 Ekip Dip LSI In=1600A 3p F F
Brand: ABB
SKU: 1SDA100897R1

C.BREAKER TMAX XT7H 1600 FIXED THREE-POLE WITH FRONT TERMINALS AND LEVER OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC EKIP DIP LSI R 1600

Ürün kimlikleri

SKU: 1SDA100897R1

EAN: 8056221009515

GTIN: 8056221009515

MPN: XT7H 1600 Ekip Dip LSI In=1600A 3p F F

Low-voltage industrial components

Teknik özellikler

Rated voltage	690 - 690 V
Number of poles	3
Device construction	Built-in device fixed built-in technique
Motor drive optional	evet
Motor drive integrated	hayır
Type of control element	Toggle
Degree of protection (IP)	IP20
Rated permanent current Iu	1600 A
With switched-off indicator	hayır
Overload release current setting	640.0 - 1600 A
Integrated earth fault protection	hayır
Complete device with protection unit	evet
With integrated under voltage release	hayır
DIN rail (top hat rail) mounting optional	hayır
Suitable for DIN rail (top hat rail) mounting	hayır
Type of electrical connection of main circuit	Bolt connection
Position of connection for main current circuit	Front side
Adjustment range undelayed short-circuit release	1600 - 16000 A
Number of auxiliary contacts as change-over contact
Number of auxiliary contacts as normally open contact
Number of auxiliary contacts as normally closed contact
Adjustment range short-term delayed short-circuit release	1600 - 16000 A
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz	-
