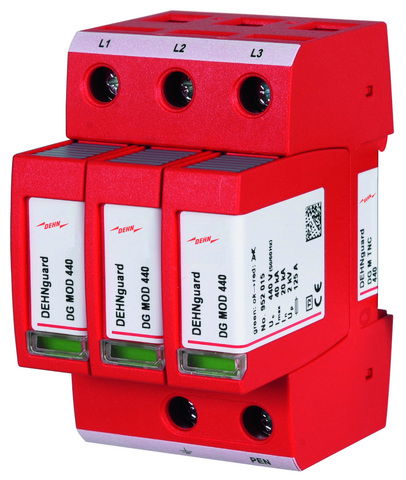

DEHNguard M surge arrester
Multipole DEHNguard M surge arrester (type 2 according to EN 61643-11) consisting of a base part and plug-in protection modules. High reliability due to "Thermo Dynamic Control" SPD monitoring device. For protecting low-voltage consumer´s installations against surges. For installation in conformity with the lightning protection zone concept at the boundaries from 0B – 1 and higher.
Ürün kimlikleri
SKU: 952303
EAN: 4013364120709
GTIN: 4013364120709
MPN: DG M TNC 440
Teknik özellikler
| Category type 2 | evet |
| Max. PV-voltage | - |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Construction size | 3 modular spacing |
| Nominal voltage AC | 400 V |
| Nominal voltage DC | - |
| Leakage-current free | - |
| Integrated backup fuse | - |
