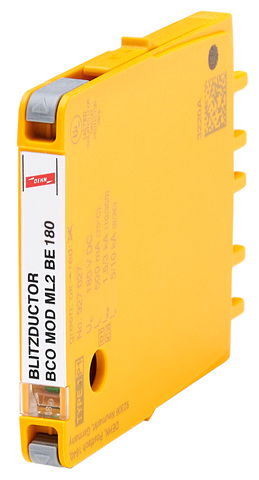

Combined arrester protection module for 2 single lines BLITZDUCTORconnect with status indication
DEHN

Combined arrester protection module for 2 single lines BLITZDUCTORconnect with status indication

Protection module with a width of 6 mm for BLITZDUCTORconnect combined arrester with status inidication for protecting two single lines sharing a common reference potential as well as unbalanced interfaces.

Ürün kimlikleri

SKU: 927027
EAN: 4013364468689
GTIN: 4013364468689
MPN: BCO MOD ML2 BE 180

Kategoriler

Switchgear & Circuit Protection Circuit Breakers MCBs RCBOs RCDs

Teknik özellikler

Frequency
Connection 1 -
Earthing via Other
Assembly width 6 mm
Mounting method On basic element
Limiting frequency 10 MHz
Nominal voltage AC
Nominal voltage DC 180.0 - 180.0 V
Signal disconnection -
Voltage protection level -
Pro-active thermo-control evet
Max. continuous voltage DC 180 V
Voltage protection level core/core 630 V
Lightning impulse current (10/350 µs) 3 kA
Number of conductors (without earthing) 2
Voltage protection level signal ground/protective ground -
