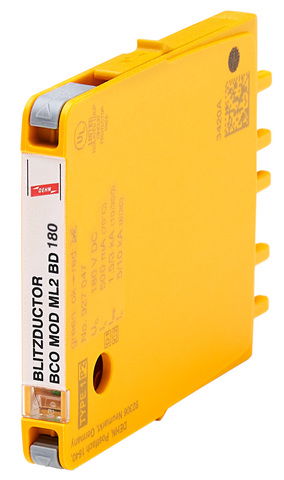

Combined arrester protection module for 1 pair BLITZDUCTORconnect with status indication

Name: Combined arrester protection module for 1 pair BLITZDUCTORconnect with status indication
Brand: DEHN
SKU: 927047

Protection module with a width of 6 mm for BLITZDUCTORconnect combined arrester with status inidication for protecting one pair of unearthed balanced interfaces.

Ürün kimlikleri

SKU: 927047

EAN: 4013364468672

GTIN: 4013364468672

MPN: BCO MOD ML2 BD 180

Kategoriler

Switchgear & Circuit Protection Circuit Breakers MCBs RCBOs RCDs

Teknik özellikler

Frequency
Connection 1	-
Earthing via	Other

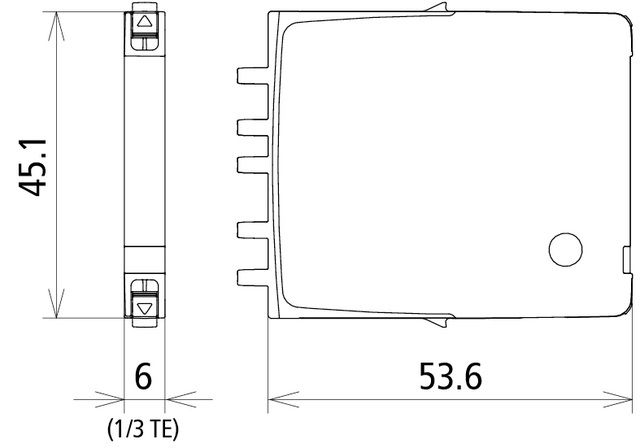

Assembly width	6 mm
Mounting method	On basic element
Limiting frequency	10 MHz
Nominal voltage AC
Nominal voltage DC	180.0 - 180.0 V
Nominal load current	0.5 A
Signal disconnection	-
Explosion-tested version	-
Voltage protection level	-
Degree of protection (IP)	IP20
Pro-active thermo-control	evet
Max. continuous voltage AC	127 V
Max. continuous voltage DC	180 V
With remote signalling contact	-
Voltage protection level core/core	420 V
Voltage protection level core/earth	800 V
Lightning impulse current (10/350 µs)	3 kA
Nominal discharge surge current (8/20)	10 kA
Number of conductors (without earthing)	2
Voltage protection level core/signal ground	-
Voltage protection level signal ground/protective ground	-

Belgeler

Deeplink product page
Circuit diagram
