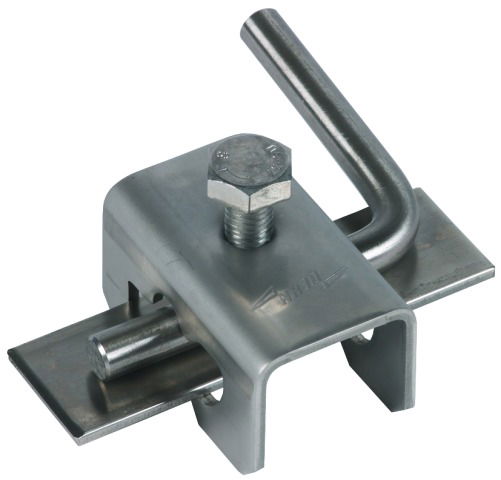

Connecting clamp, StSt f. Fl 30/Rd 10mm f. cross and parallel connections
Connecting clamp according to EN 62561-1, for connecting round and flat conductors in the concrete foundation. Single-screw design, for T, cross and parallel arrangement, without having to insert the conductor.
Ürün kimlikleri
SKU: 308129
EAN: 4013364099265
GTIN: 4013364099265
MPN: VK EH R10 F30 V2A
Kategoriler
Teknik özellikler
| Material | Stainless steel 304 (V2A) |
| Type of connector | T-/cross-/parallel connector |
| Surface protection | Untreated |
| Width flat conductor 1 | 30.0 - 30.0 mm |
| Width flat conductor 2 | 30.0 - 30.0 mm |
| Type of fastening screws | Hexagon screw |
| Diameter round conductor 1 | 10.0 - 10.0 mm |
| Diameter round conductor 2 |
