BLITZDUCTOR XTU combined lightning current and surge arrester module

Name: BLITZDUCTOR XTU combined lightning current and surge arrester module
Brand: DEHN
SKU: 920249

Space-saving combined lightning current and surge arrester module with actiVsense and LifeCheck technology for protecting one pair, direct or indirect shield earthing. Automatically detects the operating voltage of the useful signal and optimally adapts the voltage protection level to it.

Ürün kimlikleri

SKU: 920249

EAN: 4013364127845

GTIN: 4013364127845

MPN: BXTU ML2 BD S 0-180

Kategoriler

Other

Teknik özellikler

Frequency	0.0 - 400.0 MHz
Connection 1	-
Earthing via	Other
Assembly width	12 mm
Mounting method	On basic element
Limiting frequency	50 MHz
Nominal voltage AC
Nominal voltage DC	0.0 - 180.0 V
Nominal load current	0.1 A
Signal disconnection	-
Explosion-tested version	-
Voltage protection level	-
Degree of protection (IP)	IP20
Pro-active thermo-control	evet
Max. continuous voltage AC	127 V
Max. continuous voltage DC	180 V
With remote signalling contact	-
Voltage protection level core/core	-
Voltage protection level core/earth	-
Lightning impulse current (10/350 µs)	9 kA
Nominal discharge surge current (8/20)	20 kA
Number of conductors (without earthing)	2
Voltage protection level core/signal ground	-
Voltage protection level signal ground/protective ground	-

Belgeler

Deeplink product page

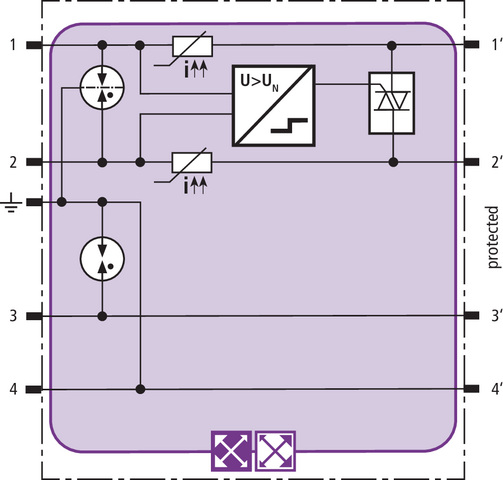

Circuit diagram
