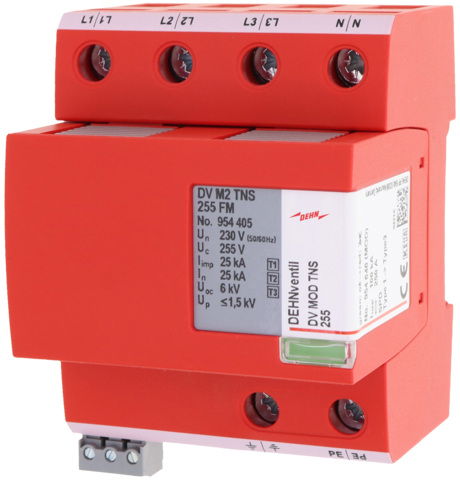

Combined arrester Type 1+2+3 DEHNventil M2 four-pole f. TN-S systems w. remote signalling contact
1 / 2
Combined arrester Type 1+2+3 DEHNventil M2 four-pole f. TN-S systems w. remote signalling contact
Multipole, spark-gap-based, modular DEHNventil combined arrester type 1 + type 2 + type 3 according to EN 61643-11, consisting of a base part and a plug-in protection module. Maximum system availability due to rapid arc control (RAC) spark gaps. Capable of protecting terminal equipment. For protecting low-voltage consumer installations against surges and even direct lightning strikes. For installation in conformity with the lightning protection zone concept at the boundaries from 0A – 2.
Ürün kimlikleri
SKU: 954405
EAN: 4013364400894
GTIN: 4013364400894
MPN: DV M2 TNS 255 FM
Kategoriler
Teknik özellikler
| Test class | Type 1 and 2 and 3 |
| Max. PV-voltage | - |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Number of poles | 4 |
| Construction size | 4 modular spacing |
| Remote signalling | evet |
| Nominal voltage AC | 230 V |
| Nominal voltage DC | - |
