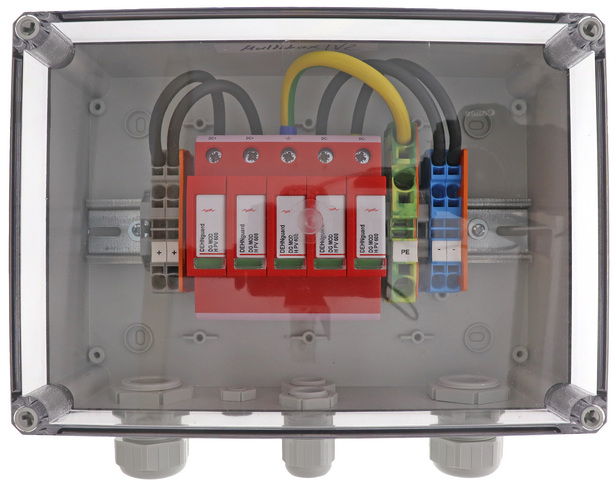

GJB in IP65 enclosure for PV systems 2MPPT and 1 string at 1100V d.c.

Generator junction box DCU 2 YPV 1100 2M 1S in degree of protection IP65. In accordance with DIN EN IEC 61439-2 for protecting 2 MPP inputs and 1 string each. Three-stage DC switching device with combined disconnection and short-circuiting device with safe electrical isolation. For use in accordance with DIN IEC 60364-7-712:2011-04 (setting up photovoltaic supply systems).
