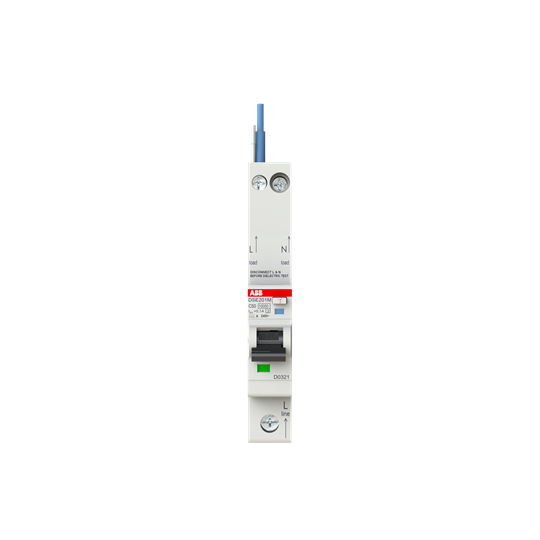

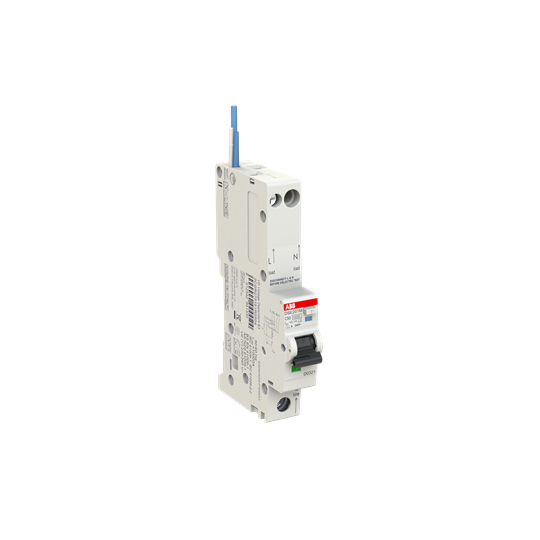

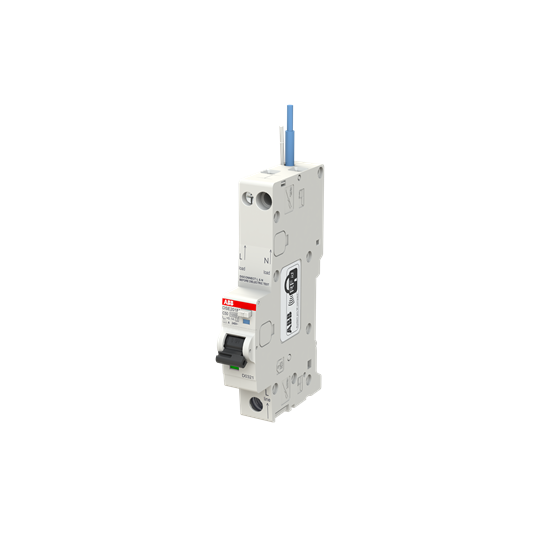

Residual Current Circuit Breaker with Overcurrent Protection
1 / 3
Residual Current Circuit Breaker with Overcurrent Protection
1P+N electronic RCBO in one-module width for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating earth fault currents; protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA). Presence of neutral (blue or black) and functional earth (white) flying leads. The neutral is unswitched
Ürün kimlikleri
SKU: 2CSR275151R2504
EAN: 8012542941330
GTIN: 8012542941330
MPN: DSE201 M C50 A100 - N Blue
Kategoriler
ETIM grubu
Teknik özellikler
| EFI00218 | 2.712593 |
| EFI07337 | 0.0015|0.0542 |
| EFI07343 | 0.0015|0.0248 |
| EFI07515 | -13|131 |
| Frequency | 50/60 Hz |
| Voltage type | AC |
| Rated current | 50 A |
| Rated voltage | 240 V |
Belgeler
Deeplink product page
Deeplink REACH
9AKK108467A9482_en_F_Reach Declaration - ABB S.p.A. Vittuone.pdf
Instructions for use
Instruction.pdf
Product data sheet
Declaration RoHS
Declaration DOC CE (Declaration of conformity CE)
2CSC421014D2702_EU_DoC_DSE201_M.pdf
Declaration EPD (Environmental Product Declaration)
ABBG-00607-V01.01-EN.pdf
