High Performance MCB

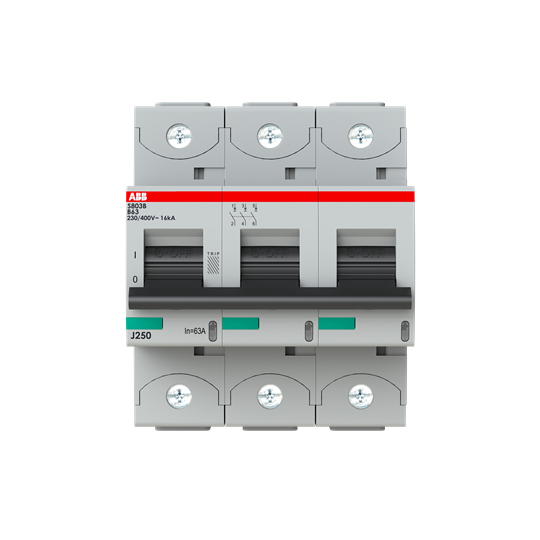

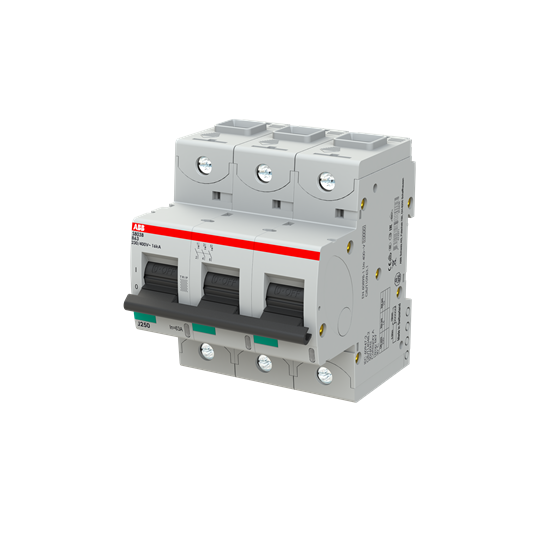

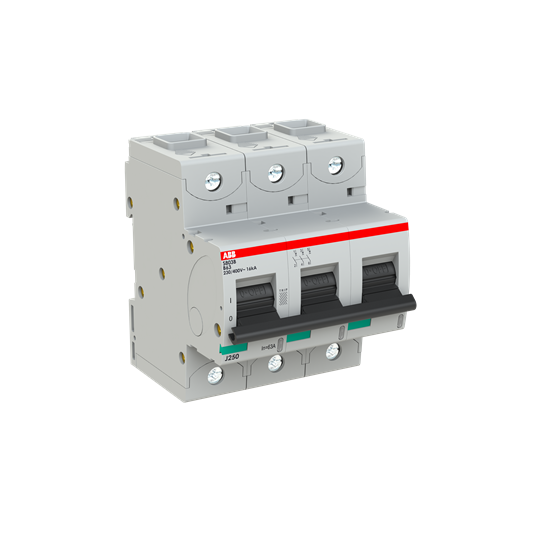

The S803B-B63 is a 3-pole High Performance Circuit breaker with B-characteristic, with cage terminal and a rated current of 63 A. It is a current limiting device with a maximum breaking capacity of 16kA at 230/400V. It can be used for voltages up to 230/400V. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S803B-B63 complies with IEC/EN 60947-2 and EN 60898-1 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S803B-B63 more comfortable. Due to the fast arc extinction of S803B-B63 your application will be secured.
Ürün kimlikleri
SKU: 2CCS813001R0635
EAN: 7612271416638
GTIN: 7612271416638
MPN: S803B-B63
Kategoriler
ETIM grubu
Teknik özellikler
| EFI00218 | 3.248025 |
| EFI07337 | 0|0.1085 |
| EFI07343 | 0|0.0775 |
| EFI07515 | -13|140 |
| Frequency | 50 - 60 Hz |
| Voltage type | Other |
| Rated current | 63 A |
| Rated voltage | 400 V |
Belgeler
Deeplink product page
Deeplink REACH
9AKK108468A3036 EU REACH Declaration S800 range.pdf
Instructions for use
Instruction Manual S800 - Rev. N.pdf
Product data sheet
Declaration DOC CE (Declaration of conformity CE)
2CCC005083D0202 EU Declaration S800S,N,C,B.pdf
Declaration EPD (Environmental Product Declaration)
EPD ABBG-00659-V01.01-EN_G - S800 MCB.pdf
