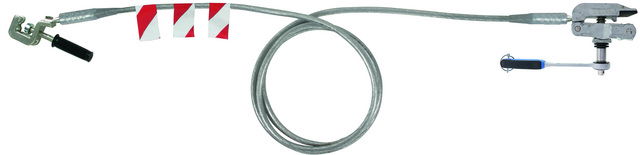

Earthing device 70 mm² L 8500mm Al w. rail clamp with ratchet

Earthing device 70 mm² L 8500mm Al w. rail clamp with ratchet

Single-pole earthing and short-circuiting device in accordance with EN/IEC 61230 (DIN VDE 0683-100) for masts or construction machines, lifting gear and maintenance vehicles for earthing next to railway tracks; 8.5 m long, with universal clamp, plastic handle and clamp for railway tracks (ratchet).

Ürün kimlikleri

SKU: 752196
EAN: 4013364230545
GTIN: 4013364230545
MPN: BEV UKH R 70 8500AL

Teknik özellikler

Model Cable
Material Aluminium
Fully insulated hayır
Number of poles 1
Length earth line -
Length 1-pole rope 8500 mm
Length phaseline a -
Length phaseline b -
Max. short circuit current 32 kA
Connecting part, phase-side Universal clamp 25/30 mm
Wire cross section, phase-side 70 mm²
