DEHNpatch M CLE RJ45B 48 surge arrester

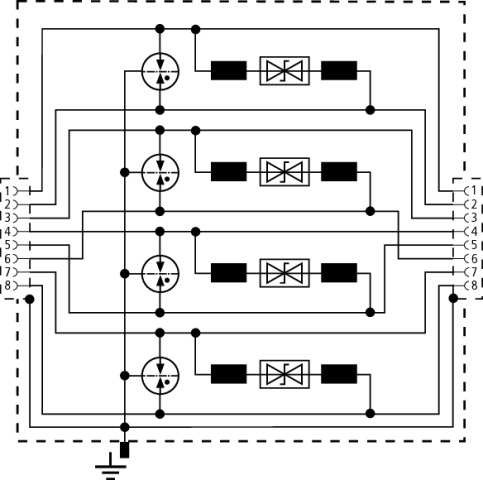

Universal arrester for Industrial Ethernet, Power over Ethernet (IEEE 802.3 compliant up to PoE++ / 4PPoE) and similar applications in structured cabling systems according to class E up to 250 MHz. Protection of all pairs by means of powerful gas discharge tubes and one adapted filter matrix per pair. Fully shielded type with sockets for DIN rail mounting.
Ürün kimlikleri
SKU: 929121
EAN: 4013364118935
GTIN: 4013364118935
MPN: DPA M CLE RJ45B 48
Kategoriler
Teknik özellikler
| Frequency | |
| Connection 1 | RJ45 |
| Earthing via | DIN rail (top hat rail) |
| Assembly width | 19 mm |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Limiting frequency | 250 MHz |
| Nominal voltage AC | |
| Nominal voltage DC | 48.0 - 48.0 V |
