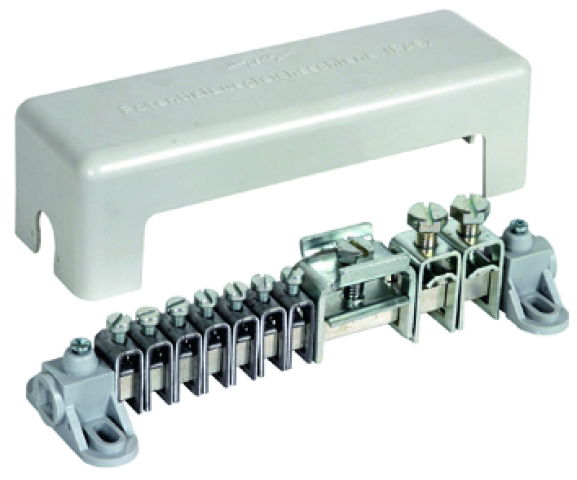

Equipotential bonding bar with cover 7x 2.5-25mm² 2x16-95mm² 1x Fl 40x5mm

Name: Equipotential bonding bar with cover 7x 2.5-25mm² 2x16-95mm² 1x Fl 40x5mm
Brand: DEHN
SKU: 563040

Equipotential bonding busbar according to EN 62561-1 for protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 (DIN VDE 0100- 410/540) (main earthing busbar) and lightning equipotential bonding according to IEC/EN 62305-3. Design D, tested according to DIN VDE 0609, terminal block St/gal Zn, grey plastic bar frames and cover (halogen-free), cover is sealable and can be labelled.

Ürün kimlikleri

SKU: 563040

EAN: 4013364082861

GTIN: 4013364082861

MPN: PAS AH RK 7X25 2X8.10 1XFL40

Kategoriler

Switchgear & Circuit Protection Busbars

Teknik özellikler

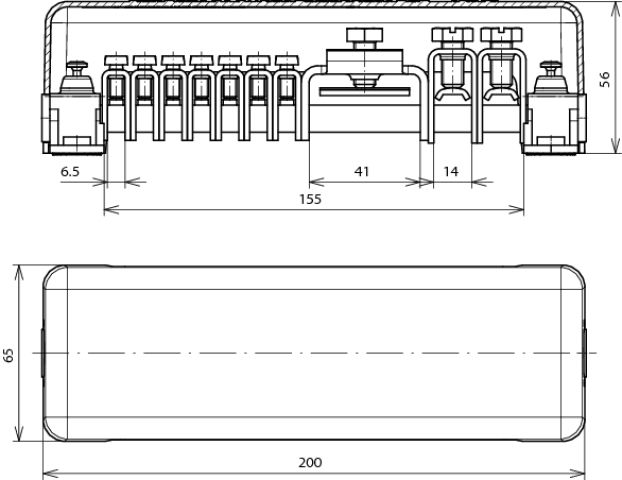

Model	With covering cap
Width	65 mm
Height	60 mm
Length	200 mm
Insulator	-
Construction type	Surface mounting modular
Material of clamp	Steel
Surface of the clamp	Galvanic/electrolytic zinc plated
Explosion-tested version	-
Material of contact rail	Brass
Surface of the contact rail	Galvanic tinned
Number of connections flat conductor 30 mm	-
Number of connections flat conductor 40 mm	1
Number of connections round conductor 8 mm	-
Number of connections round conductor 10 mm	-
Number of connections round conductor total	-
Number of connections round conductor 8-10 mm	-
Number of connections conductor to 6 mm² fixed	-
Number of connections conductor to 16 mm² fixed	-
Number of connections conductor to 25 mm² fixed	7
Number of connections conductor to 95 mm² fixed	2
