Name: Base part 4-pole for inserting an arrester module BLITZDUCTOR XT/SP
Brand: DEHN
SKU: 926304

Base part 4-pole for inserting an arrester module BLITZDUCTOR XT/SP Zoomed Image

Base part 4-pole for inserting an arrester module BLITZDUCTOR XT/SP

Teknik Veriler

Ana Özellikler

Mounting method

DIN rail (top hat rail) 35 mm

Application

Information technology

With remote signalling contact

With decoupling inductance

Number of poles

Explosion-tested version

Signalling at the device

İndirilenler

Deeplink product page

Base part 4-pole for inserting an arrester module BLITZDUCTOR XT/SP

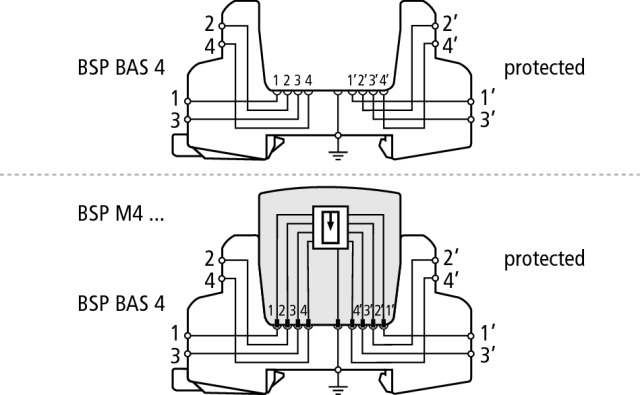

The BLITZDUCTOR SP base part is a very space-saving and universal four-pole feed-through terminal for the insertion of a protection module, signal disconnection if the protection module is removed. The snap-in mechanism at the supporting foot of the base part allows the protection module to be safely earthed via the DIN rail. Since no components of the protective circuit are situated in the base part, only the protection modules must be maintained.

Ürün detayları

SKU Kodu: 926304

EAN Kodu: 4013364157125

Minimum sipariş: 1
