Base part for BLITZDUCTOR XT Zoomed Image
DEHN

Base part for BLITZDUCTOR XT

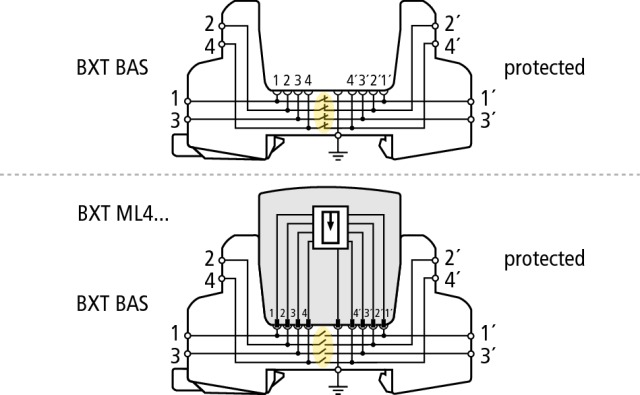

BLITZDUCTOR XT base part for use as very space-saving and universal four-pole feed-through terminal for intrinsically safe circuits for the insertion of SPD modules, no signal disconnection if the protection module is removed. The snap-in mechanism at the supporting foot of the base part allows the device to be safely earthed via the DIN rail. Since no components of the protective circuit are situated in the base part, only the protection modules must be maintained.

Ürün detayları

SKU Kodu: 920300

EAN Kodu: 4013364109179

Minimum sipariş: 1

Teknik Veriler

Ana Özellikler

Mounting method

DIN rail (top hat rail) 35 mm

Application

Information technology

With remote signalling contact

-

With decoupling inductance

hayır

Number of poles

4

Explosion-tested version

evet

Signalling at the device

-

İndirilenler
