Name: Base part for BLITZDUCTOR XT Ex (i)
Brand: DEHN
SKU: 920301

Base part for BLITZDUCTOR XT Ex (i) Zoomed Image

Teknik Veriler

Ana Özellikler

Mounting method

DIN rail (top hat rail) 35 mm

Application

Information technology

With remote signalling contact

With decoupling inductance

Number of poles

Explosion-tested version

evet

Signalling at the device

İndirilenler

Deeplink product page

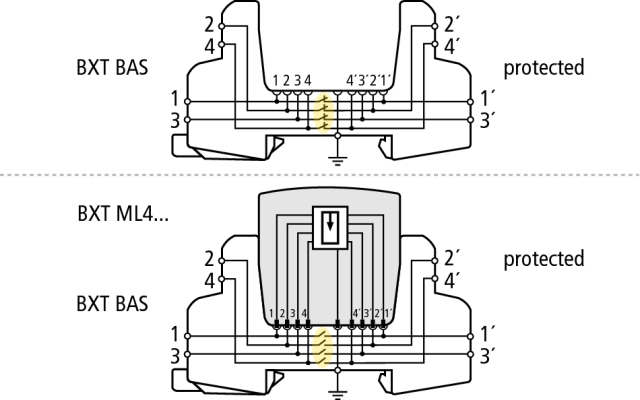

Base part for BLITZDUCTOR XT Ex (i)

BLITZDUCTOR XT base part for use as extremely space-saving, four-pole, universal feed-through terminal for intrinsically safe circuits and for the insertion of the protection module without signal interruption. The snap-in mechanism at the supporting foot of the base part allows the device to be safely earthed via the DIN rail. As no components of the protective circuit are situated in the base part, maintenance operation is only required for the protection modules.

Ürün detayları

SKU Kodu: 920301

EAN Kodu: 4013364109186

Minimum sipariş: 1
