Teknik Veriler
Ana Özellikler
Mounting method
Surface mounted
Connection 1
Clamp
Frequency
Lightning impulse current (10/350 µs)
10 kA
With remote signalling contact
-
Number of conductors (without earthing)
4
Voltage protection level
-
Limiting frequency
50 MHz
Explosion-tested version
-
Max. continuous voltage AC
-
Nominal discharge surge current (8/20)
20 kA
Nominal load current
0.1 A
Voltage protection level core/core
-
Voltage protection level core/earth
-
Max. continuous voltage DC
180 V
Degree of protection (IP)
IP65
Voltage protection level core/signal ground
-
Voltage protection level signal ground/protective ground
-
Nominal voltage AC
Nominal voltage DC
0.0 - 180.0 V
Pro-active thermo-control
-
Assembly width
93 mm
Signal disconnection
-
Earthing via
-
İndirilenler

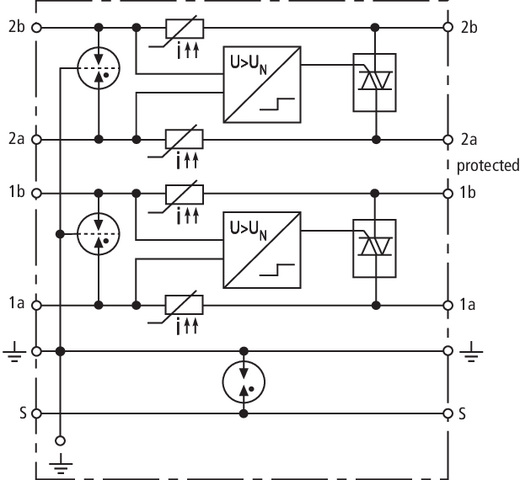

Combined arrester DEHNbox DBX
Ürün detayları
SKU Kodu: 922400
EAN Kodu: 4013364137349
Minimum sipariş: 1
Teknik Veriler
Ana Özellikler
Mounting method
Surface mounted
Connection 1
Clamp
Frequency
Lightning impulse current (10/350 µs)
10 kA
With remote signalling contact
-
Number of conductors (without earthing)
4
Voltage protection level
-
Limiting frequency
50 MHz
Explosion-tested version
-
Max. continuous voltage AC
-
Nominal discharge surge current (8/20)
20 kA
Nominal load current
0.1 A
Voltage protection level core/core
-
Voltage protection level core/earth
-
Max. continuous voltage DC
180 V
Degree of protection (IP)
IP65
Voltage protection level core/signal ground
-
Voltage protection level signal ground/protective ground
-
Nominal voltage AC
Nominal voltage DC
0.0 - 180.0 V
Pro-active thermo-control
-
Assembly width
93 mm
Signal disconnection
-
Earthing via
-
