Teknik Veriler
Ana Özellikler
Mounting method
On basic element
Connection 1
Screw terminal
Frequency
Lightning impulse current (10/350 µs)
10 kA
With remote signalling contact
-
Number of conductors (without earthing)
4
Voltage protection level
-
Limiting frequency
25.0 MHz
Explosion-tested version
evet
Max. continuous voltage AC
127 V
Nominal discharge surge current (8/20)
20 kA
Nominal load current
1 A
Voltage protection level core/core
500 V
Voltage protection level core/earth
250 V
Max. continuous voltage DC
180 V
Degree of protection (IP)
IP20
Voltage protection level core/signal ground
-
Voltage protection level signal ground/protective ground
-
Nominal voltage AC
Nominal voltage DC
180.0 - 180.0 V
Pro-active thermo-control
evet
Assembly width
12 mm
Signal disconnection
-
Earthing via
DIN rail (top hat rail)
İndirilenler

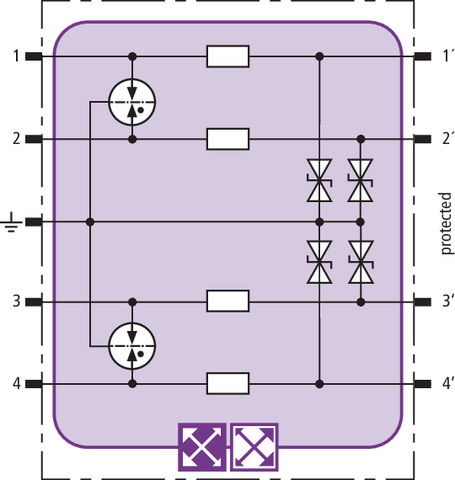

Combined arrester module for 4 single lines BLITZDUCTOR XT with LifeCheck
Ürün detayları
SKU Kodu: 920327
EAN Kodu: 4013364109087
Minimum sipariş: 1
Teknik Veriler
Ana Özellikler
Mounting method
On basic element
Connection 1
Screw terminal
Frequency
Lightning impulse current (10/350 µs)
10 kA
With remote signalling contact
-
Number of conductors (without earthing)
4
Voltage protection level
-
Limiting frequency
25.0 MHz
Explosion-tested version
evet
Max. continuous voltage AC
127 V
Nominal discharge surge current (8/20)
20 kA
Nominal load current
1 A
Voltage protection level core/core
500 V
Voltage protection level core/earth
250 V
Max. continuous voltage DC
180 V
Degree of protection (IP)
IP20
Voltage protection level core/signal ground
-
Voltage protection level signal ground/protective ground
-
Nominal voltage AC
Nominal voltage DC
180.0 - 180.0 V
Pro-active thermo-control
evet
Assembly width
12 mm
Signal disconnection
-
Earthing via
DIN rail (top hat rail)
