Teknik Veriler
Ana Özellikler
Mounting method
DIN rail (top hat rail) 35 mm
Connection 1
F-Connector
Frequency
5.0 - 2400.0 MHz
Lightning impulse current (10/350 µs)
2.5 kA
With remote signalling contact
-
Number of conductors (without earthing)
1
Voltage protection level
300 V
Limiting frequency
-
Explosion-tested version
-
Max. continuous voltage AC
-
Nominal discharge surge current (8/20)
10 kA
Nominal load current
2 A
Voltage protection level core/core
-
Voltage protection level core/earth
-
Max. continuous voltage DC
24 V
Degree of protection (IP)
IP30
Voltage protection level core/signal ground
-
Voltage protection level signal ground/protective ground
-
Nominal voltage AC
Nominal voltage DC
Pro-active thermo-control
-
Assembly width
27 mm
Signal disconnection
hayır
Earthing via
DIN rail (top hat rail)
İndirilenler

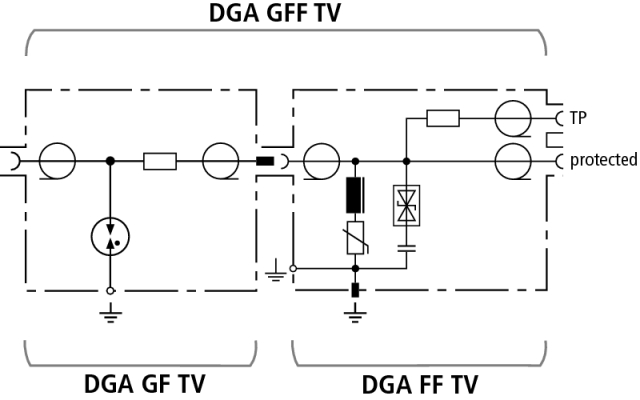

DEHNgate combined lightning current and surge arrester set
Ürün detayları
SKU Kodu: 909705
EAN Kodu: 4013364105706
Minimum sipariş: 1
Teknik Veriler
Ana Özellikler
Mounting method
DIN rail (top hat rail) 35 mm
Connection 1
F-Connector
Frequency
5.0 - 2400.0 MHz
Lightning impulse current (10/350 µs)
2.5 kA
With remote signalling contact
-
Number of conductors (without earthing)
1
Voltage protection level
300 V
Limiting frequency
-
Explosion-tested version
-
Max. continuous voltage AC
-
Nominal discharge surge current (8/20)
10 kA
Nominal load current
2 A
Voltage protection level core/core
-
Voltage protection level core/earth
-
Max. continuous voltage DC
24 V
Degree of protection (IP)
IP30
Voltage protection level core/signal ground
-
Voltage protection level signal ground/protective ground
-
Nominal voltage AC
Nominal voltage DC
Pro-active thermo-control
-
Assembly width
27 mm
Signal disconnection
hayır
Earthing via
DIN rail (top hat rail)
