Teknik Veriler
Ana Özellikler
Mounting method
DIN rail (top hat rail) 35 mm
Connection 1
Push-in terminal
Frequency
Lightning impulse current (10/350 µs)
3 kA
With remote signalling contact
hayır
Number of conductors (without earthing)
2
Voltage protection level
-
Limiting frequency
10 MHz
Explosion-tested version
evet
Max. continuous voltage AC
127 V
Nominal discharge surge current (8/20)
10 kA
Nominal load current
0.5 A
Voltage protection level core/core
420 V
Voltage protection level core/earth
800 V
Max. continuous voltage DC
180 V
Degree of protection (IP)
IP20
Voltage protection level core/signal ground
-
Voltage protection level signal ground/protective ground
-
Nominal voltage AC
Nominal voltage DC
180.0 - 180.0 V
Pro-active thermo-control
evet
Assembly width
6 mm
Signal disconnection
evet
Earthing via
DIN rail (top hat rail)
İndirilenler

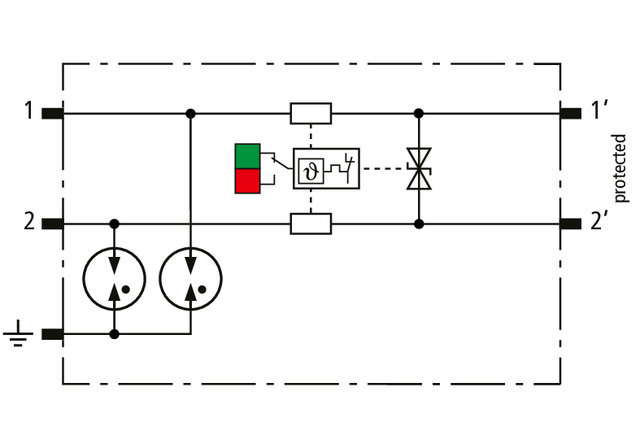

Modular combined arrester for 1 pair BLITZDUCTORconnect with status indication
Ürün detayları
SKU Kodu: 927247
EAN Kodu: 4013364468665
Minimum sipariş: 1
Teknik Veriler
Ana Özellikler
Mounting method
DIN rail (top hat rail) 35 mm
Connection 1
Push-in terminal
Frequency
Lightning impulse current (10/350 µs)
3 kA
With remote signalling contact
hayır
Number of conductors (without earthing)
2
Voltage protection level
-
Limiting frequency
10 MHz
Explosion-tested version
evet
Max. continuous voltage AC
127 V
Nominal discharge surge current (8/20)
10 kA
Nominal load current
0.5 A
Voltage protection level core/core
420 V
Voltage protection level core/earth
800 V
Max. continuous voltage DC
180 V
Degree of protection (IP)
IP20
Voltage protection level core/signal ground
-
Voltage protection level signal ground/protective ground
-
Nominal voltage AC
Nominal voltage DC
180.0 - 180.0 V
Pro-active thermo-control
evet
Assembly width
6 mm
Signal disconnection
evet
Earthing via
DIN rail (top hat rail)
