Teknik Veriler
Ana Özellikler
Mounting method
DIN rail (top hat rail) 35 mm
Lightning impulse current (10/350 µs)
25 kA
Number of poles
1
Construction size
2 modular spacing
Voltage protection level
1.5 kV
Remote signalling
-
Follow current extinguishing capability
50 kA
Max. continuous voltage AC
255 V
Nominal voltage AC
230 V
Nominal voltage DC
-
Test class
Type 1 + 2
Voltage protection level L-N
-
Signalling at the device
Optical
Max. continuous voltage DC
-
Degree of protection (IP)
IP20
Max. PV-voltage
-
Voltage protection level N-PE
-
Integrated backup fuse
evet
Max. conductor cross section solid (solid, stranded)
50 mm²
Max. conductor cross section flexible (fine-strand)
35 mm²
Voltage protection level (DC+ - DC-)
-
Voltage protection level (DC+/DC- - PE)
-
Specific energy (W/R)
156.25 kJ/Ohm
Energy-coordinated protection effect with regard to the terminal equipment
evet
System configuration DC
-
System configuration IT
-
System configuration TN
evet
System configuration TN-C
evet
System configuration TN-S
evet
System configuration TT
evet
System configuration other
-
System configuration TN-C-S
evet
Voltage protection level L-PE
-
Max. overcurrent protection device, parallel connection (fuse)
-
Max. overcurrent protection device, series connection (fuse)
-
Voltage switching spark gap technology
evet
Overcurrent protected voltage tapping
-
İndirilenler

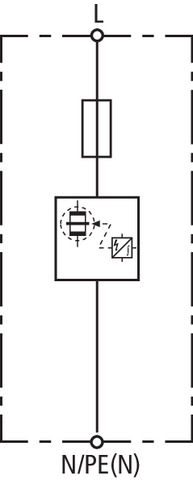

Combined arrester Type 1 + Type 2 DEHNvenCI 1-pole 255V a.c. with backup fuse
Ürün detayları
SKU Kodu: 961200
EAN Kodu: 4013364145108
Minimum sipariş: 1
