Teknik Veriler
Ana Özellikler
Mounting method
Busbar
Lightning impulse current (10/350 µs)
75 kA
Number of poles
3
Construction size
3 modular spacing
Voltage protection level
1.5 kV
Remote signalling
-
Follow current extinguishing capability
25 kA
Max. continuous voltage AC
255 V
Nominal voltage AC
230 V
Nominal voltage DC
-
Test class
Type 1 + 2
Voltage protection level L-N
-
Signalling at the device
Optical
Max. continuous voltage DC
-
Degree of protection (IP)
IP30
Max. PV-voltage
-
Voltage protection level N-PE
-
Integrated backup fuse
-
Max. conductor cross section solid (solid, stranded)
-
Max. conductor cross section flexible (fine-strand)
-
Voltage protection level (DC+ - DC-)
-
Voltage protection level (DC+/DC- - PE)
-
Specific energy (W/R)
1400 kJ/Ohm
Energy-coordinated protection effect with regard to the terminal equipment
evet
System configuration DC
-
System configuration IT
-
System configuration TN
-
System configuration TN-C
evet
System configuration TN-S
-
System configuration TT
-
System configuration other
-
System configuration TN-C-S
-
Voltage protection level L-PE
-
Max. overcurrent protection device, parallel connection (fuse)
315 A
Max. overcurrent protection device, series connection (fuse)
315 A
Voltage switching spark gap technology
evet
Overcurrent protected voltage tapping
-
İndirilenler

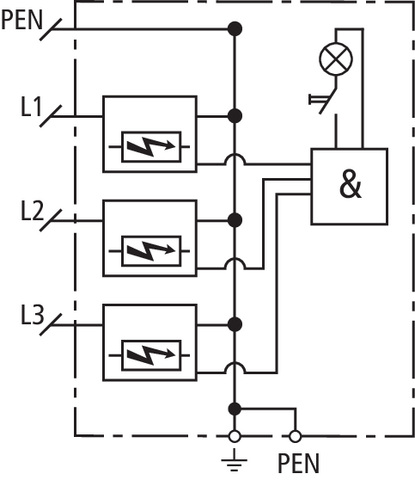

Combined arrester type 1 + type 2 DEHNventil ZP f. three-phase TN-C systems
Ürün detayları
SKU Kodu: 900390
EAN Kodu: 4013364105751
Minimum sipariş: 1
