Mounting method

On basic element

Lightning impulse current (10/350 µs)

5 kA

Number of poles

1

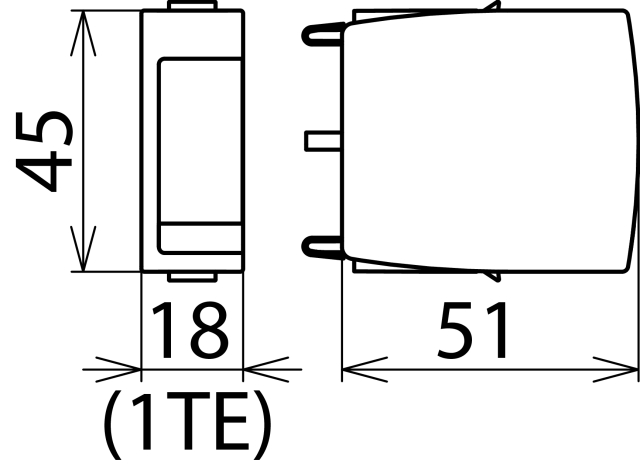

Construction size

-

Voltage protection level

-

Remote signalling

-

Follow current extinguishing capability

-

Max. continuous voltage AC

-

Nominal voltage AC

-

Nominal voltage DC

860 V

Test class

Type 1 + 2

Voltage protection level L-N

-

Signalling at the device

Optical

Max. continuous voltage DC

950 V

Degree of protection (IP)

-

Max. PV-voltage

-

Voltage protection level N-PE

-

Integrated backup fuse

-

Max. conductor cross section solid (solid, stranded)

-

Max. conductor cross section flexible (fine-strand)

-

Voltage protection level (DC+ - DC-)

4 kV

Voltage protection level (DC+/DC- - PE)

3.2 kV

Specific energy (W/R)

-

Energy-coordinated protection effect with regard to the terminal equipment

-

System configuration DC

evet

System configuration IT

-

System configuration TN

-

System configuration TN-C

-

System configuration TN-S

-

System configuration TT

-

System configuration other

-

System configuration TN-C-S

-

Voltage protection level L-PE

-

Max. overcurrent protection device, parallel connection (fuse)

-

Max. overcurrent protection device, series connection (fuse)

-

Voltage switching spark gap technology

-

Overcurrent protected voltage tapping

-
