Type1+2+3 combined arrester DEHNshield ZP Basic 2 for TT and TN-S systems Zoomed Image
DEHN

Type1+2+3 combined arrester DEHNshield ZP Basic 2 for TT and TN-S systems

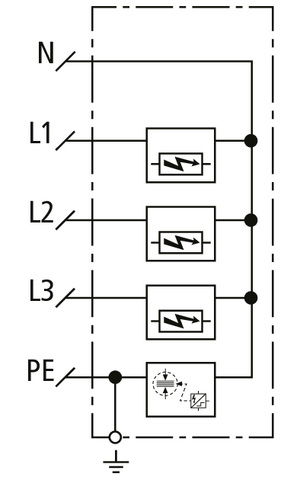

Tested type 1 + type 2 + type 3 combined arrester according to IEC 61643-11 for TT and TN-S systems (3+1 configuration); can be installed completely without tools thanks to click + power connection method for 40 mm busbar systems and push-in earthing terminal; for use in the main power supply system according to IEC 60634-4-44 clause 443 of buildings (also with overhead line supply, without external lightning protection system). A suitable cover clip according to DIN VDE 0603-1 for every standard meter panel is included in delivery.

Ürün detayları

SKU Kodu: 909331

EAN Kodu: 4013364422728

Minimum sipariş: 1

Teknik Veriler

Ana Özellikler

Mounting method

Busbar

Lightning impulse current (10/350 µs)

30 kA

Number of poles

4

Construction size

-

Voltage protection level

-

Remote signalling

-

Follow current extinguishing capability

25 kA

Max. continuous voltage AC

255 V

Nominal voltage AC

230 V

Nominal voltage DC

-

Test class

Type 1 and 2 and 3

Voltage protection level L-N

1.5 kV

Signalling at the device

Optical

Max. continuous voltage DC

-

Degree of protection (IP)

IP30

Max. PV-voltage

-

Voltage protection level N-PE

1.5 kV

Integrated backup fuse

-

Max. conductor cross section solid (solid, stranded)

25 mm²

Max. conductor cross section flexible (fine-strand)

-

Voltage protection level (DC+ - DC-)

-

Voltage protection level (DC+/DC- - PE)

-

Specific energy (W/R)

14.06 kJ/Ohm

Energy-coordinated protection effect with regard to the terminal equipment

evet

System configuration DC

-

System configuration IT

-

System configuration TN

-

System configuration TN-C

-

System configuration TN-S

evet

System configuration TT

evet

System configuration other

-

System configuration TN-C-S

-

Voltage protection level L-PE

-

Max. overcurrent protection device, parallel connection (fuse)

160 A

Max. overcurrent protection device, series connection (fuse)

160 A

Voltage switching spark gap technology

evet

Overcurrent protected voltage tapping

-
