Teknik Veriler
Ana Özellikler
Mounting method
DIN rail (top hat rail) 35 mm
Lightning impulse current (10/350 µs)
25 kA
With remote signalling contact
evet
Number of conductors (without earthing)
2
Construction size
4 modular spacing
Voltage protection level
1.5 kV
Suitable for outdoor use
-
Exhausting
-
Follow current extinguishing capability
-
Max. continuous voltage AC
-
Nominal discharge surge current (8/20)
-
Nominal voltage AC
-
Nominal voltage DC
-
Category type 1
evet
Voltage protection level L-N
-
Signalling at the device
Optical
Max. continuous voltage DC
60 V
Degree of protection (IP)
IP20
Voltage protection level N-PE
-
Integrated backup fuse
-
Max. conductor cross section solid (solid, stranded)
50 mm²
Max. conductor cross section flexible (fine-strand)
35 mm²
Voltage protection level (DC+ - DC-)
-
Voltage protection level (DC+/DC- - PE)
-
Specific energy (W/R)
156.25 kJ/Ohm
System configuration DC
evet
System configuration IT
-
System configuration TN
-
System configuration TN-C
-
System configuration TN-S
-
System configuration TT
-
System configuration other
-
System configuration TN-C-S
-
İndirilenler

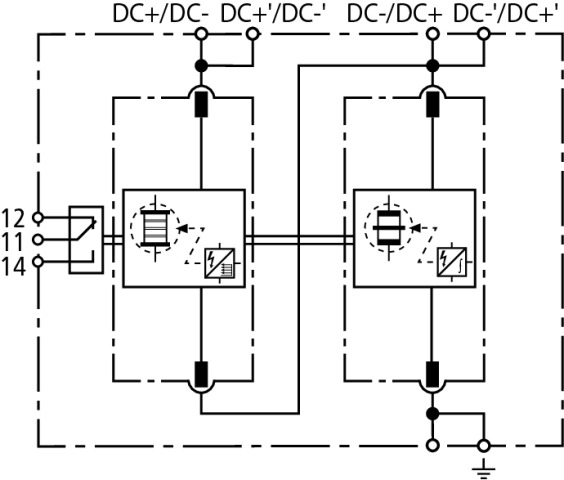

Coord. lightn. current arrester Type 1 DEHNsecure M for d.c. circuits
Ürün detayları
SKU Kodu: 971226
EAN Kodu: 4013364138629
Minimum sipariş: 1
