Name: Isolating spark gap for Ex area w. connecting cable Cu 25mm² L 300 mm
Brand: DEHN
SKU: 923062

Isolating spark gap for Ex area w. connecting cable Cu 25mm² L 300 mm Zoomed Image

Isolating spark gap for Ex area w. connecting cable Cu 25mm² L 300 mm

Teknik Veriler

Ana Özellikler

Surface protection

Lightning impulse current (10/350 µs)

2.5 kA

Connection

Flange

Explosion-tested version

evet

Suitable for connection

Other

Nominal discharge surge current (8/20)

50 kA

Material of connection

Stainless steel 304 (V2A)

Degree of protection (IP)

IP54

Rated impulse sparkover voltage

Rated power-frequency withstand voltage

300 V

İndirilenler

Deeplink product page

Isolating spark gap for Ex area w. connecting cable Cu 25mm² L 300 mm

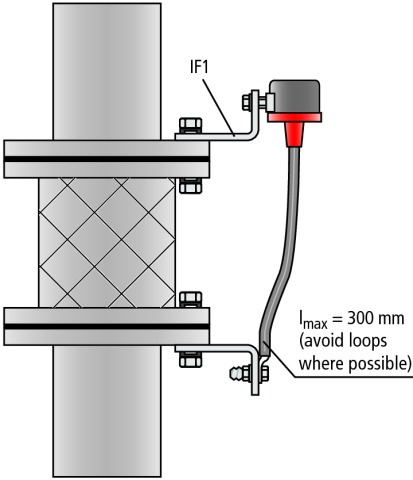

Ex isolating spark gap for indirectly connecting/earthing functionally isolated installation parts under lightning conditions. For safe installation in Ex zone 2 (gases). ATEX-certified isolating spark gap for lightning equipotential bonding according to IEC 62305 in hazardous areas (zone 2) with flexible conductor connection.

Ürün detayları

SKU Kodu: 923062

EAN Kodu: 4013364038912

Minimum sipariş: 1
