Teknik Veriler
Ana Özellikler
Mounting method
DIN rail (top hat rail) 35 mm
Connection 1
Screw terminal
Frequency
Lightning impulse current (10/350 µs)
0.8 kA
With remote signalling contact
-
Number of conductors (without earthing)
4
Limiting frequency
1.7 MHz
Explosion-tested version
-
Max. continuous voltage AC
4.2 V
Nominal discharge surge current (8/20)
10 kA
Nominal load current
0.5 A
Voltage protection level core/core
8.5 V
Voltage protection level core/earth
600 V
Signalling at the device
-
Max. continuous voltage DC
6 V
Degree of protection (IP)
IP20
Voltage protection level core/signal ground
-
Voltage protection level signal ground/protective ground
-
Nominal voltage AC
Nominal voltage DC
5.0 - 5.0 V
Pro-active thermo-control
-
Assembly width
54 mm
Signal disconnection
hayır
Earthing via
Separate conductor
İndirilenler

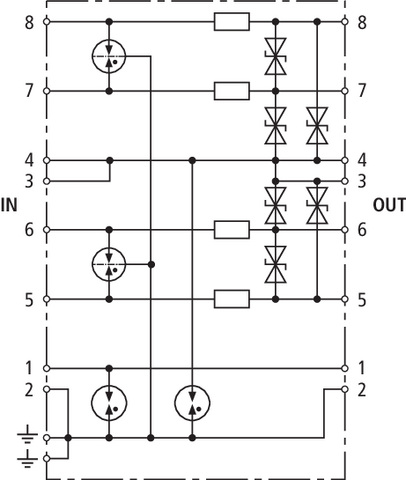

BLITZDUCTOR VT surge arrester
Ürün detayları
SKU Kodu: 918401
EAN Kodu: 4013364074224
Minimum sipariş: 1
Teknik Veriler
Ana Özellikler
Mounting method
DIN rail (top hat rail) 35 mm
Connection 1
Screw terminal
Frequency
Lightning impulse current (10/350 µs)
0.8 kA
With remote signalling contact
-
Number of conductors (without earthing)
4
Limiting frequency
1.7 MHz
Explosion-tested version
-
Max. continuous voltage AC
4.2 V
Nominal discharge surge current (8/20)
10 kA
Nominal load current
0.5 A
Voltage protection level core/core
8.5 V
Voltage protection level core/earth
600 V
Signalling at the device
-
Max. continuous voltage DC
6 V
Degree of protection (IP)
IP20
Voltage protection level core/signal ground
-
Voltage protection level signal ground/protective ground
-
Nominal voltage AC
Nominal voltage DC
5.0 - 5.0 V
Pro-active thermo-control
-
Assembly width
54 mm
Signal disconnection
hayır
Earthing via
Separate conductor
