BLITZDUCTOR XT surge arrester module Zoomed Image
DEHN

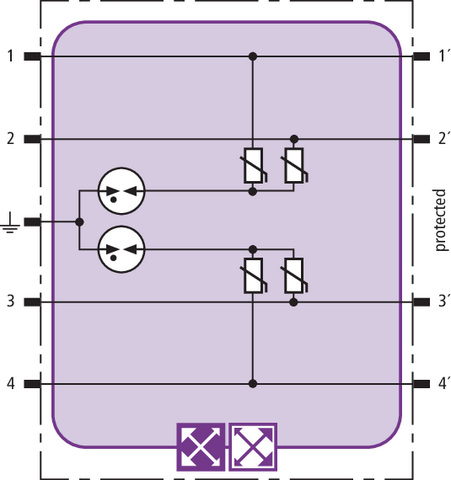

BLITZDUCTOR XT surge arrester module

Space-saving surge arrester module with LifeCheck feature for protecting four lines of stranded signal interfaces. If LifeCheck detects thermal or electrical overload, the arrester has to be replaced. This status is indicated contactlessly by the DEHNrecord LC / SCM / MCM reader.

Ürün detayları

SKU Kodu: 920389

EAN Kodu: 4013364118447

Minimum sipariş: 1

Teknik Veriler

Ana Özellikler

Mounting method

On basic element

Connection 1

Screw terminal

Frequency

Lightning impulse current (10/350 µs)

-

With remote signalling contact

-

Number of conductors (without earthing)

4

Limiting frequency

20.0 MHz

Explosion-tested version

-

Max. continuous voltage AC

-

Nominal discharge surge current (8/20)

10 kA

Nominal load current

3.0 A

Voltage protection level core/core

1100 V

Voltage protection level core/earth

1200 V

Signalling at the device

-

Max. continuous voltage DC

-

Degree of protection (IP)

IP20

Voltage protection level core/signal ground

-

Voltage protection level signal ground/protective ground

-

Nominal voltage AC

Nominal voltage DC

250.0 - 250.0 V

Pro-active thermo-control

evet

Assembly width

12 mm

Signal disconnection

-

Earthing via

Other
