Teknik Veriler
Ana Özellikler
Mounting method
DIN rail (top hat rail) 35 mm
Connection 1
Push-in terminal
Frequency
Lightning impulse current (10/350 µs)
0.4 kA
With remote signalling contact
-
Number of conductors (without earthing)
2
Limiting frequency
0.6 MHz
Explosion-tested version
-
Max. continuous voltage AC
10.6 V
Nominal discharge surge current (8/20)
3 kA
Nominal load current
10 A
Voltage protection level core/core
80 V
Voltage protection level core/earth
50 V
Signalling at the device
Optical
Max. continuous voltage DC
15 V
Degree of protection (IP)
IP20
Voltage protection level core/signal ground
-
Voltage protection level signal ground/protective ground
-
Nominal voltage AC
Nominal voltage DC
12.0 - 12.0 V
Pro-active thermo-control
evet
Assembly width
6 mm
Signal disconnection
-
Earthing via
DIN rail (top hat rail)
İndirilenler

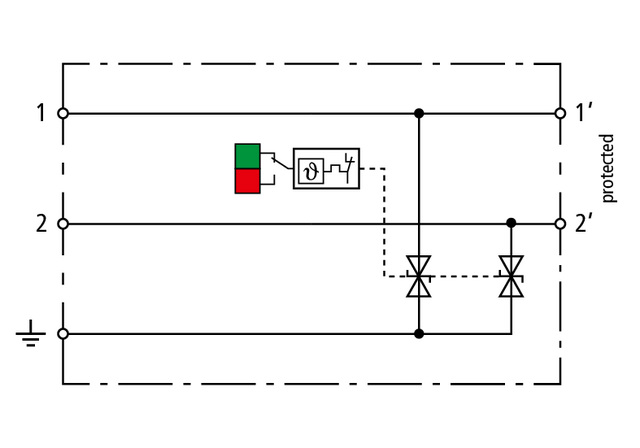

Compact surge arrester for 2 single lines BLITZDUCTORconnect with status indication
Ürün detayları
SKU Kodu: 927987
EAN Kodu: 4013364485754
Minimum sipariş: 1
Teknik Veriler
Ana Özellikler
Mounting method
DIN rail (top hat rail) 35 mm
Connection 1
Push-in terminal
Frequency
Lightning impulse current (10/350 µs)
0.4 kA
With remote signalling contact
-
Number of conductors (without earthing)
2
Limiting frequency
0.6 MHz
Explosion-tested version
-
Max. continuous voltage AC
10.6 V
Nominal discharge surge current (8/20)
3 kA
Nominal load current
10 A
Voltage protection level core/core
80 V
Voltage protection level core/earth
50 V
Signalling at the device
Optical
Max. continuous voltage DC
15 V
Degree of protection (IP)
IP20
Voltage protection level core/signal ground
-
Voltage protection level signal ground/protective ground
-
Nominal voltage AC
Nominal voltage DC
12.0 - 12.0 V
Pro-active thermo-control
evet
Assembly width
6 mm
Signal disconnection
-
Earthing via
DIN rail (top hat rail)
