Teknik Veriler
Ana Özellikler
Mounting method
DIN rail (top hat rail) 35 mm
Connection 1
BNC, 75 Ohm
Frequency
0.0 - 300.0 MHz
Lightning impulse current (10/350 µs)
1 kA
With remote signalling contact
-
Number of conductors (without earthing)
1
Limiting frequency
-
Explosion-tested version
-
Max. continuous voltage AC
-
Nominal discharge surge current (8/20)
5 kA
Nominal load current
0.1 A
Voltage protection level core/core
-
Voltage protection level core/earth
-
Signalling at the device
-
Max. continuous voltage DC
6.4 V
Degree of protection (IP)
IP10
Voltage protection level core/signal ground
-
Voltage protection level signal ground/protective ground
-
Nominal voltage AC
Nominal voltage DC
5.0 - 5.0 V
Pro-active thermo-control
-
Assembly width
19 mm
Signal disconnection
-
Earthing via
Other
İndirilenler

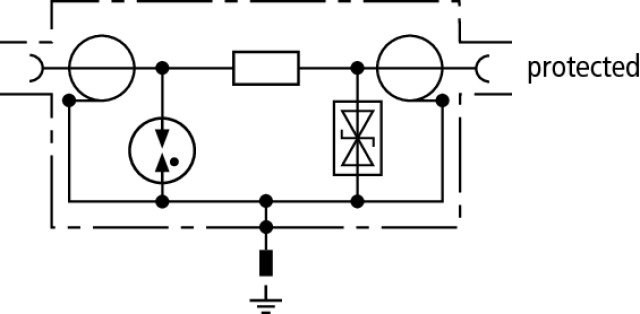

DEHNgate surge arrester
Ürün detayları
SKU Kodu: 909710
EAN Kodu: 4013364118942
Minimum sipariş: 1
