DEHNpipe surge arrester Zoomed Image
DEHN

DEHNpipe surge arrester

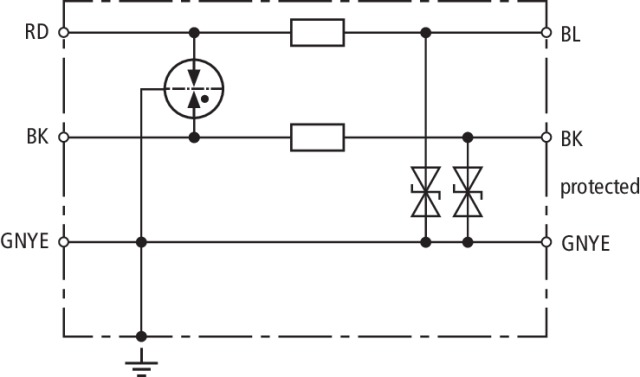

Energy-coordinated two-stage arrester with gas discharge tube and diodes to earth. For unbalanced interfaces with 1/2-14 NPT thread (male/male). The earthing conductor is led through the surge arrester.

Ürün detayları

SKU Kodu: 929921

EAN Kodu: 4013364098169

Minimum sipariş: 1

Teknik Veriler

Ana Özellikler

Mounting method

Other

Connection 1

Connection cable

Frequency

Lightning impulse current (10/350 µs)

1 kA

With remote signalling contact

-

Number of conductors (without earthing)

2

Limiting frequency

-

Explosion-tested version

-

Max. continuous voltage AC

24.5 V

Nominal discharge surge current (8/20)

10 kA

Nominal load current

0.5 A

Voltage protection level core/core

98 V

Voltage protection level core/earth

49 V

Signalling at the device

-

Max. continuous voltage DC

34.8 V

Degree of protection (IP)

IP67

Voltage protection level core/signal ground

-

Voltage protection level signal ground/protective ground

-

Nominal voltage AC

Nominal voltage DC

24.0 - 24.0 V

Pro-active thermo-control

-

Assembly width

-

Signal disconnection

-

Earthing via

Separate conductor
