Teknik Veriler
Ana Özellikler
Mounting method
LSA-plus plug-in
Connection 1
-
Frequency
Lightning impulse current (10/350 µs)
1 kA
With remote signalling contact
-
Number of conductors (without earthing)
20
Limiting frequency
-
Explosion-tested version
-
Max. continuous voltage AC
127 V
Nominal discharge surge current (8/20)
10 kA
Nominal load current
0.4 A
Voltage protection level core/core
600 V
Voltage protection level core/earth
600 V
Signalling at the device
Optical
Max. continuous voltage DC
180 V
Degree of protection (IP)
-
Voltage protection level core/signal ground
-
Voltage protection level signal ground/protective ground
-
Nominal voltage AC
Nominal voltage DC
110.0 - 110.0 V
Pro-active thermo-control
-
Assembly width
111 mm
Signal disconnection
-
Earthing via
Other
İndirilenler

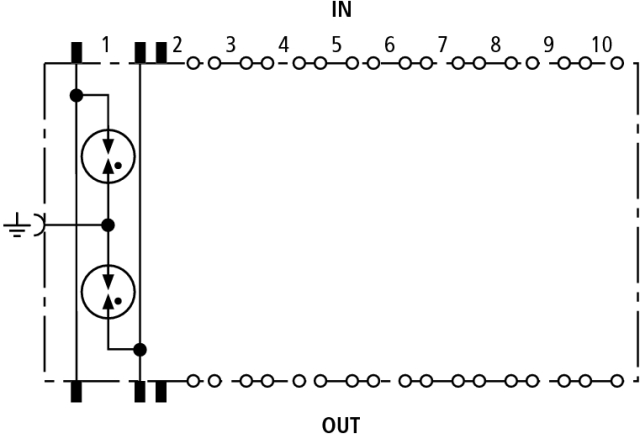

Protective block LSA-Plus tech. 10 pairs, 3-elec. arresters fail safe fault ind.
Ürün detayları
SKU Kodu: 907216
EAN Kodu: 4013364106680
Minimum sipariş: 1
