Teknik Veriler
Ana Özellikler
Mounting method
Other
Connection 1
Screw terminal
Frequency
Lightning impulse current (10/350 µs)
1 kA
With remote signalling contact
-
Number of conductors (without earthing)
2
Limiting frequency
7 MHz
Explosion-tested version
evet
Max. continuous voltage AC
24.5 V
Nominal discharge surge current (8/20)
10 kA
Nominal load current
0.5 A
Voltage protection level core/core
49 V
Voltage protection level core/earth
1000 V
Signalling at the device
-
Max. continuous voltage DC
34.8 V
Degree of protection (IP)
IP67
Voltage protection level core/signal ground
-
Voltage protection level signal ground/protective ground
-
Nominal voltage AC
Nominal voltage DC
24.0 - 24.0 V
Pro-active thermo-control
-
Assembly width
-
Signal disconnection
-
Earthing via
Other
İndirilenler

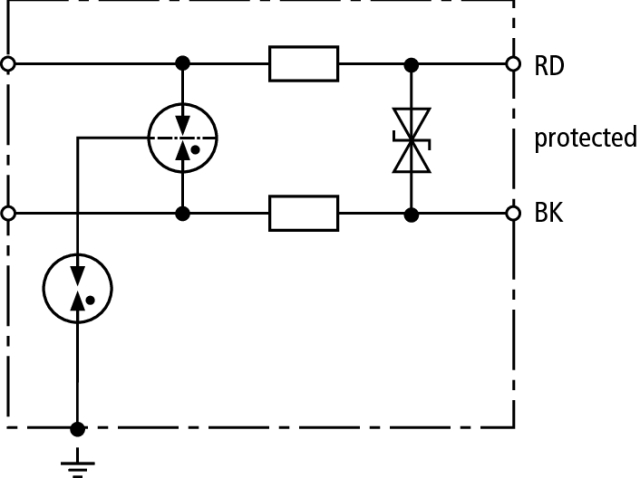

Surge arrester DEHNpipe Ex (i) with M20x1.5 female and male thread
Ürün detayları
SKU Kodu: 929960
EAN Kodu: 4013364098145
Minimum sipariş: 1
