Surge arrester terminal block 2-pole DEHNconnect SD2 Zoomed Image
DEHN

Surge arrester terminal block 2-pole DEHNconnect SD2

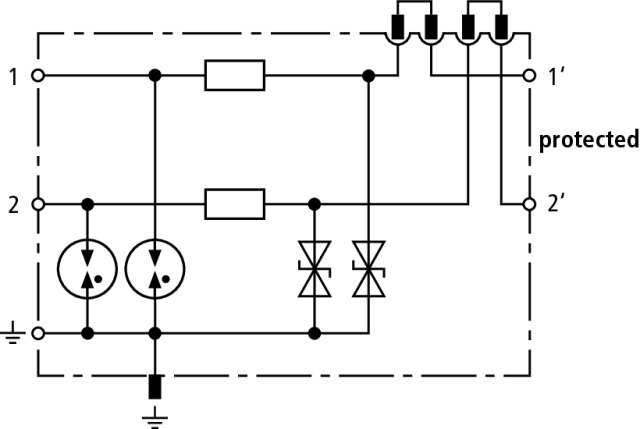

DEHNconnect SD2 terminal block with integrated surge protection. Energy-coordinated two-stage arrester for protecting two single lines sharing a common reference potential as well as unbalanced interfaces. Signal circuits can be disconnected by removing the plug-in part.

Ürün detayları

SKU Kodu: 917921

EAN Kodu: 4013364150577

Minimum sipariş: 1

Teknik Veriler

Ana Özellikler

Mounting method

DIN rail (top hat rail) 35 mm

Connection 1

Push-in terminal

Frequency

Lightning impulse current (10/350 µs)

-

With remote signalling contact

-

Number of conductors (without earthing)

2

Limiting frequency

6 MHz

Explosion-tested version

evet

Max. continuous voltage AC

23 V

Nominal discharge surge current (8/20)

10 kA

Nominal load current

0.5 A

Voltage protection level core/core

90 V

Voltage protection level core/earth

45 V

Signalling at the device

None

Max. continuous voltage DC

33 V

Degree of protection (IP)

Other

Voltage protection level core/signal ground

-

Voltage protection level signal ground/protective ground

-

Nominal voltage AC

Nominal voltage DC

24.0 - 24.0 V

Pro-active thermo-control

-

Assembly width

6 mm

Signal disconnection

evet

Earthing via

DIN rail (top hat rail)
