Teknik Veriler
Ana Özellikler
Mounting method
DIN rail (top hat rail) 35 mm
Connection 1
Push-in terminal
Frequency
Lightning impulse current (10/350 µs)
-
With remote signalling contact
-
Number of conductors (without earthing)
2
Limiting frequency
2.5 MHz
Explosion-tested version
evet
Max. continuous voltage AC
9.5 V
Nominal discharge surge current (8/20)
10 kA
Nominal load current
0.5 A
Voltage protection level core/core
19 V
Voltage protection level core/earth
650 V
Signalling at the device
None
Max. continuous voltage DC
14 V
Degree of protection (IP)
Other
Voltage protection level core/signal ground
-
Voltage protection level signal ground/protective ground
-
Nominal voltage AC
Nominal voltage DC
12.0 - 12.0 V
Pro-active thermo-control
-
Assembly width
6 mm
Signal disconnection
evet
Earthing via
DIN rail (top hat rail)
İndirilenler

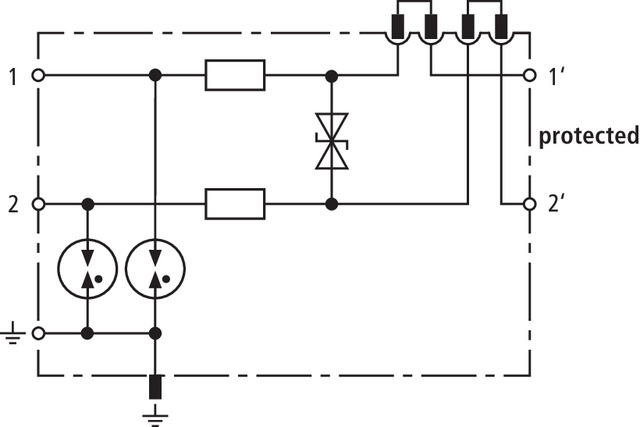

Surge arrester terminal block 2-pole DEHNconnect SD2
Ürün detayları
SKU Kodu: 917940
EAN Kodu: 4013364150591
Minimum sipariş: 1
Teknik Veriler
Ana Özellikler
Mounting method
DIN rail (top hat rail) 35 mm
Connection 1
Push-in terminal
Frequency
Lightning impulse current (10/350 µs)
-
With remote signalling contact
-
Number of conductors (without earthing)
2
Limiting frequency
2.5 MHz
Explosion-tested version
evet
Max. continuous voltage AC
9.5 V
Nominal discharge surge current (8/20)
10 kA
Nominal load current
0.5 A
Voltage protection level core/core
19 V
Voltage protection level core/earth
650 V
Signalling at the device
None
Max. continuous voltage DC
14 V
Degree of protection (IP)
Other
Voltage protection level core/signal ground
-
Voltage protection level signal ground/protective ground
-
Nominal voltage AC
Nominal voltage DC
12.0 - 12.0 V
Pro-active thermo-control
-
Assembly width
6 mm
Signal disconnection
evet
Earthing via
DIN rail (top hat rail)
