Teknik Veriler
Ana Özellikler
Mounting method
DIN rail (top hat rail) 35 mm
Connection 1
Push-in terminal
Frequency
Lightning impulse current (10/350 µs)
-
With remote signalling contact
-
Number of conductors (without earthing)
2
Limiting frequency
8.7 MHz
Explosion-tested version
-
Max. continuous voltage AC
41 V
Nominal discharge surge current (8/20)
0.3 kA
Nominal load current
10 A
Voltage protection level core/core
150 V
Voltage protection level core/earth
75 V
Signalling at the device
-
Max. continuous voltage DC
58 V
Degree of protection (IP)
Other
Voltage protection level core/signal ground
-
Voltage protection level signal ground/protective ground
-
Nominal voltage AC
Nominal voltage DC
48.0 - 48.0 V
Pro-active thermo-control
-
Assembly width
6 mm
Signal disconnection
evet
Earthing via
DIN rail (top hat rail)
İndirilenler

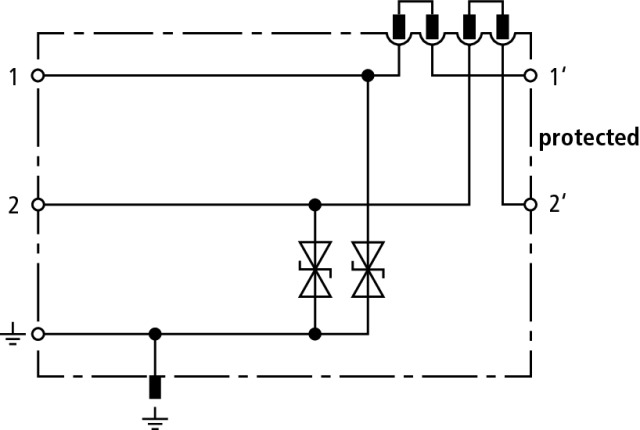

Surge arrester terminal block 2-pole DEHNconnect SD2
Ürün detayları
SKU Kodu: 917989
EAN Kodu: 4013364150669
Minimum sipariş: 1
Teknik Veriler
Ana Özellikler
Mounting method
DIN rail (top hat rail) 35 mm
Connection 1
Push-in terminal
Frequency
Lightning impulse current (10/350 µs)
-
With remote signalling contact
-
Number of conductors (without earthing)
2
Limiting frequency
8.7 MHz
Explosion-tested version
-
Max. continuous voltage AC
41 V
Nominal discharge surge current (8/20)
0.3 kA
Nominal load current
10 A
Voltage protection level core/core
150 V
Voltage protection level core/earth
75 V
Signalling at the device
-
Max. continuous voltage DC
58 V
Degree of protection (IP)
Other
Voltage protection level core/signal ground
-
Voltage protection level signal ground/protective ground
-
Nominal voltage AC
Nominal voltage DC
48.0 - 48.0 V
Pro-active thermo-control
-
Assembly width
6 mm
Signal disconnection
evet
Earthing via
DIN rail (top hat rail)
İndirilenler
