Teknik Veriler
Ana Özellikler
Mounting method
DIN rail (top hat rail) 35 mm
With remote signalling contact
evet
Number of conductors (without earthing)
3
Construction size
3 modular spacing
Voltage protection level
1.75 kV
Max. continuous voltage AC
385 V
Nominal discharge surge current (8/20)
20 kA
Nominal voltage AC
230 V
Nominal voltage DC
-
Category type 2
evet
Voltage protection level L-N
-
Signalling at the device
Optical
Max. continuous voltage DC
-
Degree of protection (IP)
IP20
Max. PV-voltage
-
Voltage protection level N-PE
-
Integrated backup fuse
-
Max. conductor cross section solid (solid, stranded)
35 mm²
Max. conductor cross section flexible (fine-strand)
25 mm²
System configuration DC
-
System configuration IT
-
System configuration TN
-
System configuration TN-C
evet
System configuration TN-S
-
System configuration TT
-
System configuration other
-
System configuration TN-C-S
-
Max. discharge surge current (8/20)
40 kA
Short-circuit breaking capacity (Isccr)
25 kA
Max. overcurrent protection device, parallel connection (fuse)
125 A
Max. overcurrent protection device, series connection (fuse)
100 A
Integrated short-circuit protection
-
Integrated short-circuit protection selective to fuse gG
-
Leakage-current free
-
İndirilenler

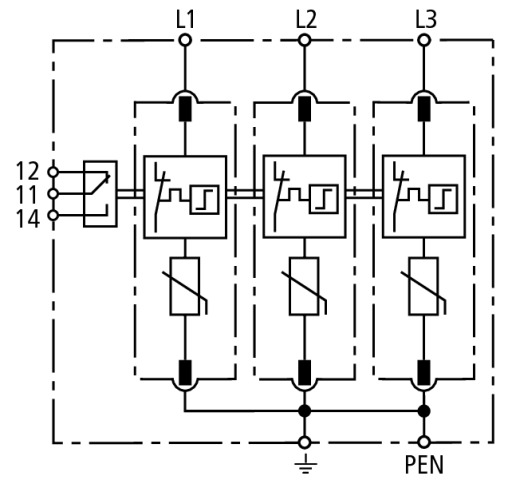

DEHNguard M type 2 surge arrester 3-pole for TN-C systems
Ürün detayları
SKU Kodu: 952319
EAN Kodu: 4013364124035
Minimum sipariş: 1
Teknik Veriler
Ana Özellikler
Mounting method
DIN rail (top hat rail) 35 mm
With remote signalling contact
evet
Number of conductors (without earthing)
3
Construction size
3 modular spacing
Voltage protection level
1.75 kV
Max. continuous voltage AC
385 V
Nominal discharge surge current (8/20)
20 kA
Nominal voltage AC
230 V
Nominal voltage DC
-
Category type 2
evet
Voltage protection level L-N
-
Signalling at the device
Optical
Max. continuous voltage DC
-
Degree of protection (IP)
IP20
Max. PV-voltage
-
Voltage protection level N-PE
-
Integrated backup fuse
-
Max. conductor cross section solid (solid, stranded)
35 mm²
Max. conductor cross section flexible (fine-strand)
25 mm²
System configuration DC
-
System configuration IT
-
System configuration TN
-
System configuration TN-C
evet
System configuration TN-S
-
System configuration TT
-
System configuration other
-
System configuration TN-C-S
-
Max. discharge surge current (8/20)
40 kA
Short-circuit breaking capacity (Isccr)
25 kA
Max. overcurrent protection device, parallel connection (fuse)
125 A
Max. overcurrent protection device, series connection (fuse)
100 A
Integrated short-circuit protection
-
Integrated short-circuit protection selective to fuse gG
-
Leakage-current free
-
