Mounting method

DIN rail (top hat rail) 35 mm

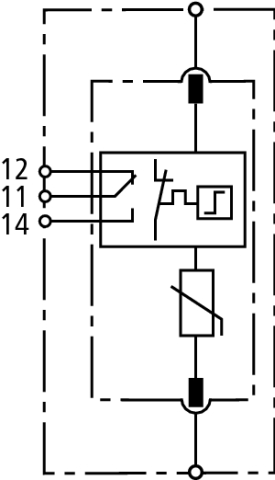

With remote signalling contact

evet

Number of conductors (without earthing)

1

Construction size

1 modular spacing

Voltage protection level

2.5 kV

Max. continuous voltage AC

600 V

Nominal discharge surge current (8/20)

15 kA

Nominal voltage AC

480 V

Nominal voltage DC

-

Category type 2

evet

Voltage protection level L-N

-

Signalling at the device

Optical

Max. continuous voltage DC

600 V

Degree of protection (IP)

IP20

Max. PV-voltage

-

Voltage protection level N-PE

-

Integrated backup fuse

-

Max. conductor cross section solid (solid, stranded)

35 mm²

Max. conductor cross section flexible (fine-strand)

25 mm²

System configuration DC

-

System configuration IT

-

System configuration TN

evet

System configuration TN-C

evet

System configuration TN-S

evet

System configuration TT

evet

System configuration other

-

System configuration TN-C-S

evet

Max. discharge surge current (8/20)

30 kA

Short-circuit breaking capacity (Isccr)

25 kA

Max. overcurrent protection device, parallel connection (fuse)

100 A

Max. overcurrent protection device, series connection (fuse)

100 A

Integrated short-circuit protection

-

Integrated short-circuit protection selective to fuse gG

-

Leakage-current free

-
