Mounting method

DIN rail (top hat rail) 35 mm

With remote signalling contact

-

Number of poles

2

Voltage protection level

-

Max. continuous voltage AC

-

Total discharge current (8/20) (L+N-PE)

-

Nominal discharge surge current (8/20) (L-N)

-

Nominal load current

10 A

Nominal voltage AC

230 V

Nominal voltage DC

-

Category type 3

-

Voltage protection level L-N

-

Voltage protection level L-PE/N-PE

-

Signalling at the device

-

Max. continuous voltage DC

-

Degree of protection (IP)

IP20

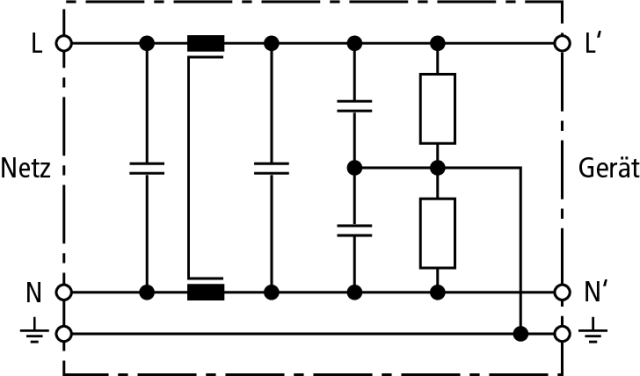

With interference suppressor filter

evet

Max. conductor cross section solid (solid, stranded)

2.5 mm²

Max. conductor cross section flexible (fine-strand)

4 mm²

Total discharge current (8/20) (L1+L2+L3+N-PE)

-

Max. overcurrent protection device, parallel connection (fuse)

-

Max. overcurrent protection device, series connection (fuse)

-
