Teknik Veriler
Ana Özellikler
Mounting method
Wall socket
With remote signalling contact
-
Number of poles
2
Voltage protection level
-
Max. continuous voltage AC
255 V
Total discharge current (8/20) (L+N-PE)
5 kA
Nominal discharge surge current (8/20) (L-N)
3 kA
Nominal load current
-
Nominal voltage AC
230 V
Nominal voltage DC
-
Category type 3
evet
Voltage protection level L-N
1.25 kV
Voltage protection level L-PE/N-PE
1.5 kV
Signalling at the device
Acoustic
Max. continuous voltage DC
-
Degree of protection (IP)
IP20
With interference suppressor filter
-
Max. conductor cross section solid (solid, stranded)
-
Max. conductor cross section flexible (fine-strand)
-
Total discharge current (8/20) (L1+L2+L3+N-PE)
-
Max. overcurrent protection device, parallel connection (fuse)
16 A
Max. overcurrent protection device, series connection (fuse)
16 A
İndirilenler

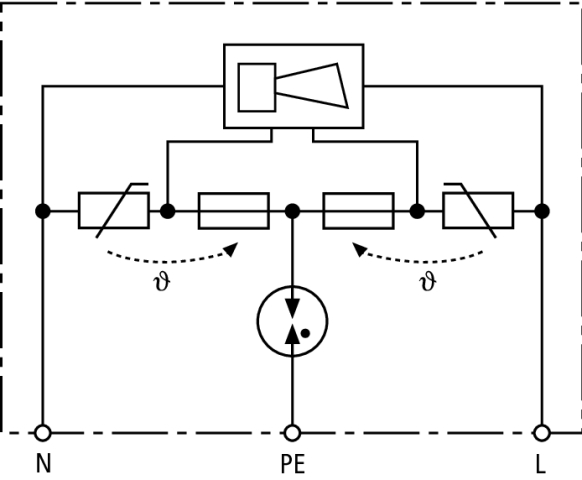

Surge protection module for earthed outlets
Ürün detayları
SKU Kodu: 924350
EAN Kodu: 4013364076709
Minimum sipariş: 1
