Name: DEHNmid medium voltage arrester Ur: 9kV In: 10kA line discharge class 1 indoor
Brand: DEHN
SKU: 990003

DEHNmid medium voltage arrester Ur: 9kV In: 10kA line discharge class 1 indoor Zoomed Image

DEHNmid medium voltage arrester Ur: 9kV In: 10kA line discharge class 1 indoor

Teknik Veriler

Ana Özellikler

Model

Without screen

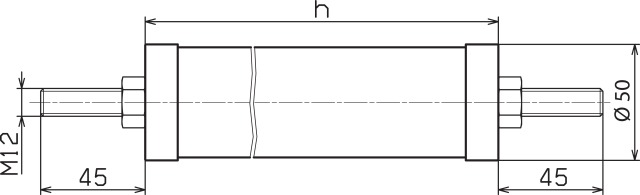

Height

132 mm

Application

Interior area

Rated voltage AC

9 kV

Continuous voltage AC

7.2 kV

Creepage path

108 mm

Continuous voltage DC

Rated voltage DC

İndirilenler

Deeplink product page

Circuit diagram

Mounting instruction

Product data sheet

DEHNmid medium voltage arrester Ur: 9kV In: 10kA line discharge class 1 indoor

DEHNmid medium-voltage arrester for protecting transformers, switchgear installations and transmission lines against atmospheric and switching overvoltage as per IEC / EN 60099-4. High-temperature vulcanised silicone housing for indoor use prevents the formation of water and pollution layers. Long service life thanks to powerful metal oxide varistors.

Ürün detayları

SKU Kodu: 990003

EAN Kodu: 4013364102606

Minimum sipariş: 1
