Name: DEHNmid MV arrester Ur: 18kV In: 10kA line disch. class 1 incr. creepage path
Brand: DEHN
SKU: 990202

DEHNmid MV arrester Ur: 18kV In: 10kA line disch. class 1 incr. creepage path Zoomed Image

DEHNmid MV arrester Ur: 18kV In: 10kA line disch. class 1 incr. creepage path

Teknik Veriler

Ana Özellikler

Model

With screen

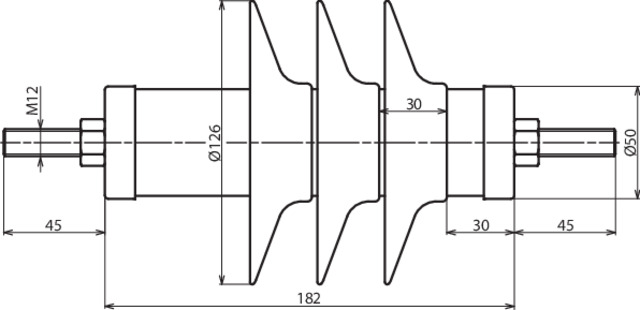

Height

182 mm

Application

Exterior area

Rated voltage AC

18 kV

Continuous voltage AC

14.4 kV

Creepage path

383 mm

Continuous voltage DC

Rated voltage DC

İndirilenler

Deeplink product page

Circuit diagram

Mounting instruction

Product data sheet

DEHNmid MV arrester Ur: 18kV In: 10kA line disch. class 1 incr. creepage path

DEHNmid medium-voltage arrester for protecting transformers, switchgear installations and transmission lines against atmospheric and switching overvoltage as per IEC / EN 60099-4. High-temperature vulcanised silicone housing for outdoor use prevents the formation of water and pollution layers. Long service life thanks to powerful metal oxide varistors.

Ürün detayları

SKU Kodu: 990202

EAN Kodu: 4013364102958

Minimum sipariş: 1
